OEM SMP Hermetically signati Connector Supplier

Ningbo Hanson Communicatio Technology Co., Ltd. Home / Products / Hermetically Signati Series / SMP Hermetically signati Connector

SMP Hermetically signati Connector

Descriptio:

SMP-J genus hermeticae RF connectoris coaxialis characteres hermeticae fasciculi habet, et in testam vel tabulam fabricari potest et in tubum fabricari et conflari potest. Testa et conductor interior huius producti e materia Kovar admixto fiunt, et superficies auro duro vel molli auro inaurari potest; Medium insulatum constituitur vitreae sinterae in caliditate, et dielectricae constantis circiter 4. Habet utilitates parvi ponderis, leve pondus, obsignationem hermeticam, altam firmitatem, etc. Plerumque usus est in occasionibus ad signandi requisita vel speciales requisita in volumine et pondere producto, et apta ad intensivam institutionem.

inquire

Basic structura:
SMP-J typus aeris RF connexoris coaxialis signatus plerumque tribus partibus constat: conductor exterior, medium vitreum et conductor interior, et structura fundamentalis in figura ostenditur.

Cum exposita pars conductoris interioris producti insertio vel superficiei glutino iungitur, finis faciei conductoris interioris sicut caput sphaericum produci potest; cum exposita pars interioris conductoris producti vinculo iungitur, finis faciei conductoris interioris produci potest sicut caput torto vel latere detecto, pars conductoris interioris moliti potest.

Praecipua technica parametri:

Characteres electrici
Impedimentum proprium 50Ω Frequentia Range DC~40GHz
Dielectric contra intentionem 500Vrms Nulla resistentia 2000M Ω
Voltage VSWR <1.4 Damnum insertio ≤0.05 f dB(GHz)
Materia et mechanica, proprietatibus environmental
Casing Lavable Alloy / Aurum Plated paxilli Plug Thorium Delegable Alloy Aurum Plating
Insulatio medium vitrum Connector Diuturnitatem plena Detent ≥100 times
Ultrices rate ≤1.01325×10 ⁹ Pa ·m³/s Limited Detent ≥500 times
operating temperatus -65℃~ 165℃ lenis Bore ≥1000 times

Dimensiones interface:
SMP-J Connexiones aereae obsignatae RF coaxiales tres formas interfacies habent: effugium plenum, medium effugium, et foramen leve. Cum nominat exemplar, F significat plenam evasionem, L significat medium effugium, et S significat foramen leve. Dimensiones interfacies dividuntur in dimensiones interfacies normales et dimensiones interfacies breves, quarum utraque cum SMP-K specie obturaculorum inter se cohaerent.

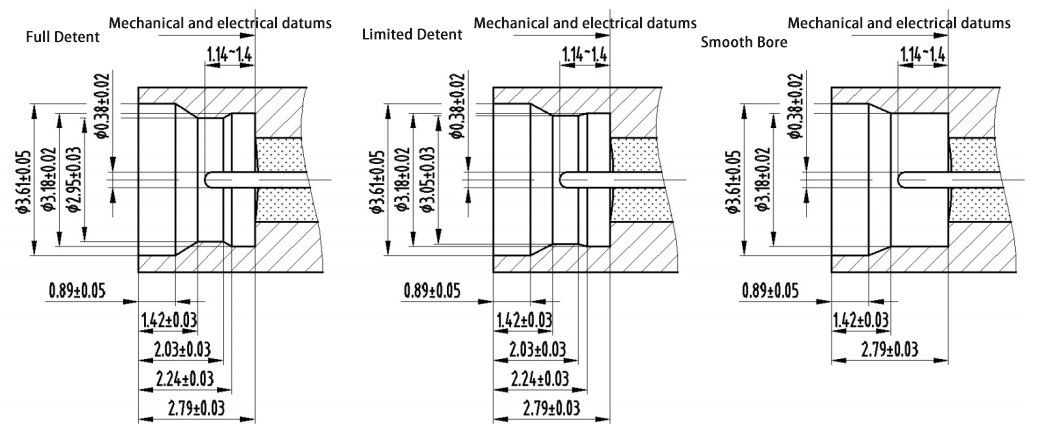

Standard Interface Size：

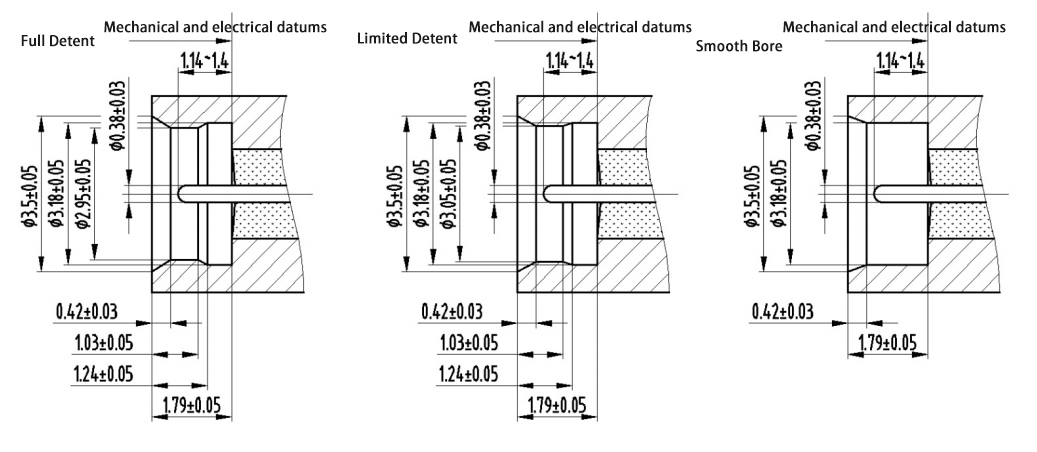

Brevis interface magnitudine ：

SMP SERIES

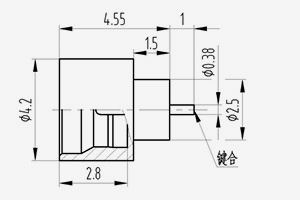

  • SMP(M)-JYD3S
    SMP(M)-JYD3S
    Model Dicta
    SMP(M)-JYD3S Smooth Bore

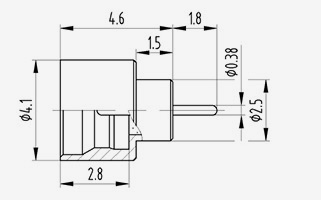

  • SMP(M)-JYD6L
    SMP(M)-JYD6L
    Model Dicta
    SMP(M)-JYD6L Limited Detent

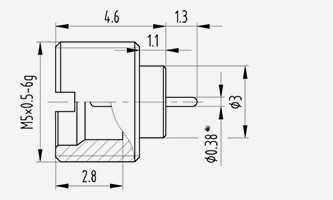

  • SMP(M)-JYD12L
    SMP(M)-JYD12L
    Model Dicta
    SMP(M)-JYD12L Plena Detent

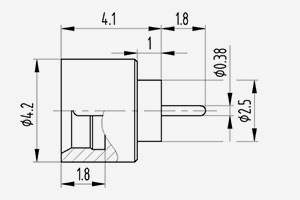

  • SMP(M)-JYD13F
    SMP(M)-JYD13F
    Model Dicta
    SMP(M)-JYD13F Plena Detent

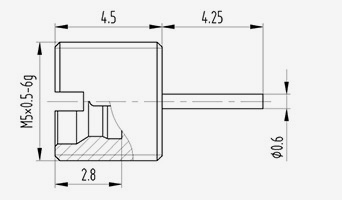

  • SMP(M)-JYD14L
    SMP(M)-JYD14L
    Model Dicta
    SMP(M)-JYD14L Limited Detent

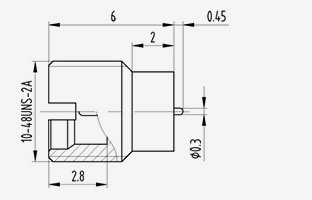

  • SMP(M)-JYD17S
    SMP(M)-JYD17S
    Model Dicta
    SMP(M)-JYD17S Smooth Bore

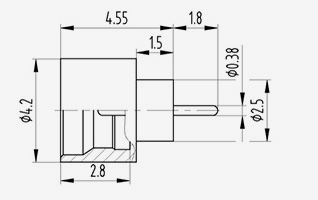

  • SMP(M)-JYD19L
    SMP(M)-JYD19L
    Exemplar Dicta
    SMP(M)-JYD19L Limited Detent
  • SMP(M)-JYD22S
    SMP(M)-JYD22S
    Exemplar Dicta
    SMP(M)-JYD22S Limited Detent
  • SMP(M)-JYD23S
    SMP(M)-JYD23S
    Exemplar Dicta
    SMP(M)-JYD23S Limited Detent
  • SMP(M)-JYD24S
    SMP(M)-JYD24S
    Model Dicta
    SMP(M)-JYD24S Limited Detent
  • SMP(M)-JYD25L
    SMP(M)-JYD25L
    Model Dicta
    SMP(M)-JYD25L Limited Detent
  • SMP(M)-JYD26L
    SMP(M)-JYD26L
    Model Dicta
    SMP(M)-JYD26L Limited Detent
  • SMP(M)-JYD27L
    SMP(M)-JYD27L
    Exemplar Dicta
    SMP(M)-JYD27L Limited Detent
  • SMP(M)-JYD28L
    SMP(M)-JYD28L
    Model Dicta
    SMP(M)-JYD28L Limited Detent
  • SMP(M)-JYD29L
    SMP(M)-JYD29L
    Model Dicta
    SMP(M)-JYD29L Limited Detent
  • SMP(M)-JYD30L
    SMP(M)-JYD30L
    Model Dicta
    SMP(M)-JYD30L Limited Detent
  • SMP(M)-JYD31L
    SMP(M)-JYD31L
    Model Dicta
    SMP(M)-JYD31L Limited Detent
  • SMP(M)-JYD32F
    SMP(M)-JYD32F
    Exemplar Dicta
    SMP(M)-JYD32F Limited Detent
  • SMP(M)-JYD33L
    SMP(M)-JYD33L
    Exemplar Dicta
    SMP(M)-JYD33L Limited Detent
  • SMP(M)-JYD34L
    SMP(M)-JYD34L
    Model Dicta
    SMP(M)-JYD34L Limited Detent
  • SMP(M)-JYD35L
    SMP(M)-JYD35L
    Exemplar Dicta
    SMP(M)-JYD35L Limited Detent
  • SMP(M)-JYD37L
    SMP(M)-JYD37L
    Exemplar Dicta
    SMP(M)-JYD37L Limited Detent
  • SMP(M)-JYD41L
    SMP(M)-JYD41L
    Model Dicta
    SMP(M)-JYD41L Limited Detent
  • SMP(M)-JYD42S
    SMP(M)-JYD42S
    Model Dicta
    SMP(M)-JYD42S Limited Detent
  • SMP(M)-JYD43L
    SMP(M)-JYD43L
    Exemplar Dicta
    SMP(M)-JYD43L Limited Detent
  • SMP(M)-JYD44L
    SMP(M)-JYD44L
    Model Dicta
    SMP(M)-JYD44L Limited Detent
  • SMP(M)-JYD45L
    SMP(M)-JYD45L
    Exemplar Dicta
    SMP(M)-JYD45L Limited Detent
  • SMP(M)-JYD46L
    SMP(M)-JYD46L
    Exemplar Dicta
    SMP(M)-JYD46L Limited Detent
  • SMP(M)-JYD47L
    SMP(M)-JYD47L
    Model Dicta
    SMP(M)-JYD47L Limited Detent
  • SMP(M)-JYD48L
    SMP(M)-JYD48L
    Exemplar Dicta
    SMP(M)-JYD48L Limited Detent
  • SMP(M)-JYD49L
    SMP(M)-JYD49L
    Model Dicta
    SMP(M)-JYD49L Limited Detent
  • SMP(M)-JYD50S
    SMP(M)-JYD50S
    Model Dicta
    SMP(M)-JYD50S Smooth Bore
  • SMP(M)-JYD51L
    SMP(M)-JYD51L
    Exemplar Dicta
    SMP(M)-JYD51L Limited Detent
  • SMP(M)-JYD52S
    SMP(M)-JYD52S
    Model Dicta
    SMP(M)-JYD52S Smooth Bore
  • SMP(M)-JYD53L
    SMP(M)-JYD53L
    Model Dicta
    SMP(M)-JYD53L Limited Detent
  • SMP(M)-JYD54S
    SMP(M)-JYD54S
    Model Dicta
    SMP(M)-JYD54S Smooth Bore
  • SMP(M)-JYD55L
    SMP(M)-JYD55L
    Exemplar Dicta
    SMP(M)-JYD55L Limited Detent
  • SMP(M)-JYD57S
    SMP(M)-JYD57S
    Exemplar Dicta
    SMP(M)-JYD57S Smooth Bore
  • SMP(M)-JYD80L
    SMP(M)-JYD80L
    Model Dicta
    SMP(M)-JYD80L Limited Detent
  • SMP(M)-JYD81L
    SMP(M)-JYD81L
    Exemplar Dicta
    SMP(M)-JYD81L Limited Detent
  • SMP(M)-JYD82L
    SMP(M)-JYD82L
    Exemplar Dicta
    SMP(M)-JYD82L Limited Detent
  • SMP(M)-JYD83F
    SMP(M)-JYD83F
    Exemplar Dicta
    SMP(M)-JYD83F Plena Detent
  • SMP(M)-JYD84S
    SMP(M)-JYD84S
    Model Dicta
    SMP(M)-JYD84S Smooth Bore
  • SMP(M)-JYD85S
    SMP(M)-JYD85S
    Model Dicta
    SMP(M)-JYD85S Smooth Bore
  • SMP(M)-JYD86L
    SMP(M)-JYD86L
    Exemplar Dicta
    SMP(M)-JYD86L Limited Detent
  • SMP(M)-JYD87S
    SMP(M)-JYD87S
    Model Dicta
    SMP(M)-JYD87S Smooth Bore
  • SMP(M)-JYD88L
    SMP(M)-JYD88L
    Exemplar Dicta
    SMP(M)-JYD88L Limited Detent
  • SMP(M)-JYD89L
    SMP(M)-JYD89L
    Model Dicta
    SMP(M)-JYD89L Limited Detent
  • SMP(M)-JYD90L
    SMP(M)-JYD90L
    Exemplar Dicta
    SMP(M)-JYD90L Limited Detent
  • SMP(M)-JYD91L
    SMP(M)-JYD91L
    Exemplar Dicta
    SMP(M)-JYD91L Limited Detent
  • SMP(M)-JYD92L
    SMP(M)-JYD92L
    Exemplar Dicta
    SMP(M)-JYD92L Limited Detent
  • SMP(M)-JYD93S
    SMP(M)-JYD93S
    Exemplar Dicta
    SMP(M)-JYD93S Smooth Bore
  • SMP(M)-JYD94L
    SMP(M)-JYD94L
    Model Dicta
    SMP(M)-JYD94L Limited Detent
  • SMP(M)-JYD95L
    SMP(M)-JYD95L
    Exemplar Dicta
    SMP(M)-JYD95L Limited Detent
  • SMP(M)-JYD96L
    SMP(M)-JYD96L
    Exemplar Dicta
    SMP(M)-JYD96L Limited Detent
  • SMP(M)-JYD97S
    SMP(M)-JYD97S
    Model Dicta
    SMP(M)-JYD97S Smooth Bore
  • SMP(M)-JYJ1S
    SMP(M)-JYJ1S
    Exemplar Dicta
    SMP(M)-JYJ1S Smooth Bore
