Fabricator Primarius RF Glass Insulator Fornitor

Ningbo Hanson Communicatio Technology Co., Ltd. Home / Products / Hermetically Signati Series / RF Glass Insulator

RF Glass Insulator

Descriptio:

vitrei insulatores vitreo sintering structurae utuntur cum bona obsignatione perficiendi. Adhiberi possunt cum connexionibus millimetris fluctuum sicut SMA et 2.92, et etiam directe adhiberi possunt inter tabulas, exempla, et templates et componentes. Utitur vitreo (constans dielectrico circiter 4.0) ut materia media insulating, et conductores interiores et exteriores ex materia mixturae Kovar fiunt. Postquam summus temperatus sintering, superficies est nickel-aurata. Insulatores vitrei utilitates habent mediocres, leves, pondus, aerumnas, magnae constantiae. Plerumque adhibentur in occasionibus ad signandi requisita, seu requisita ad productum volumen et pondus. Apta sunt ad intensivam institutionem. Internus conductor coniungi potest variis modis, ut obturaculum-in, superficies ascendens, glutino et auri compagem.

Sciscitare

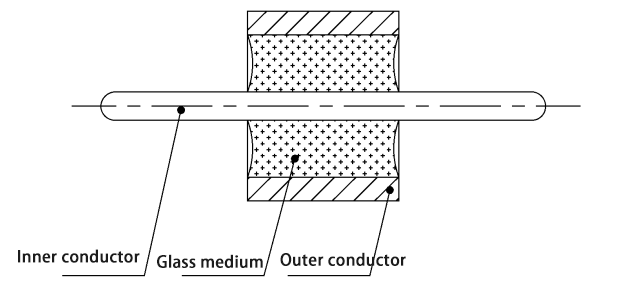

Basic structura:
Insulator vitreus plerumque tribus partibus constat: conductor exterior, medium vitreum et conductor interior, eiusque structura prima in hac figura ostenditur.

Specificationes technicae et fides probat:

Characteres electrici
Impedimentum proprium 50Ω vel alius Frequentia Range DC~65GHz
Dielectric contra intentionem ≥500V Nulla Resistentia ≥5000M Ω
Contactus resistentia Interiorem conductor≤3m Ω Voltage VSWR (50Ω) ≤ 1.05 0.008f ( f: GHz)
Exterior conductor ≤2m Ω RF Insertion Loss (50Ω) ≤0.05 f (f; GHz)
Materia et mechanica, proprietatibus environmental
Exterior conductor Delegatus Alloys Air lacus rate ≤ 1.01*10 -9 Pa.m 3 /S
Interiorem conductor Degradable Alloys operating temperatus -65 ℃ ~ 165 ℃
Insulatio medium vitrum

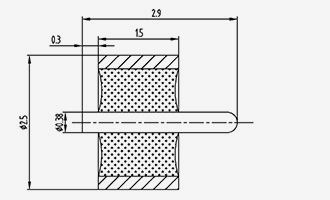

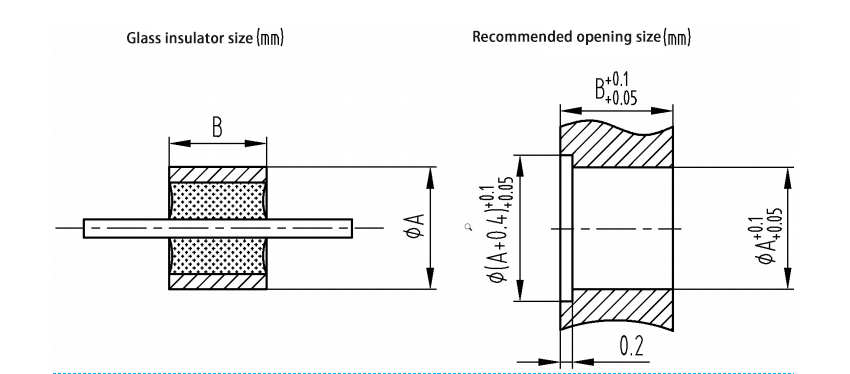

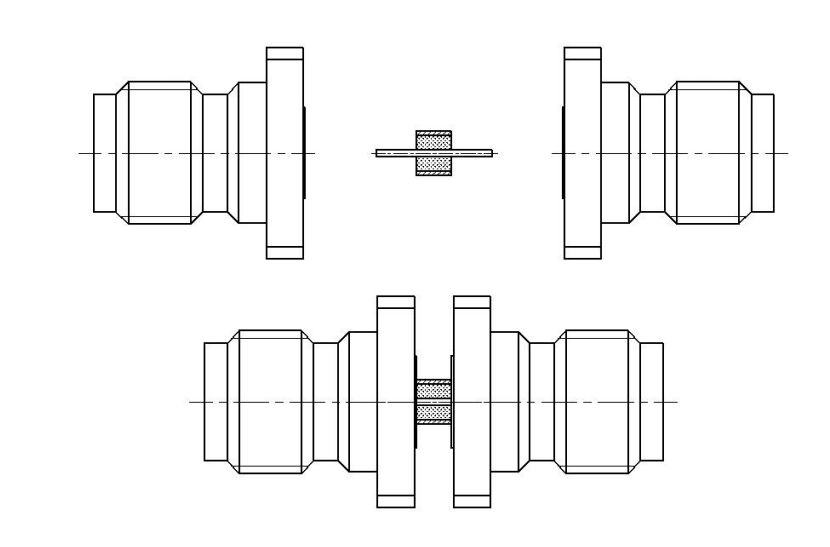

Commendatur institutionem rationem vitream insulators

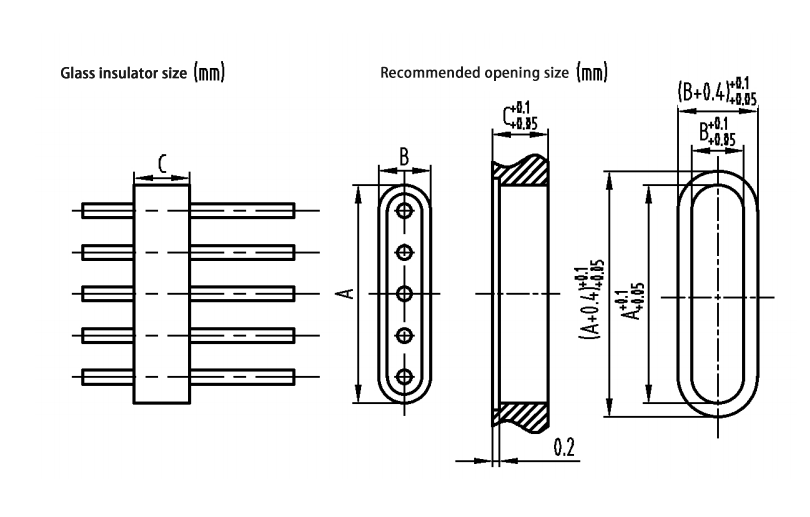

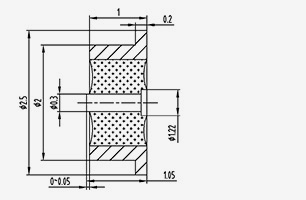

Commendatam institutionem aperiendi dimensiones pro uno nucleo insulatorum vitreorum infra monstrantur:

Commendatum inscensum aperiendi dimensiones pro insulatoribus vitreis multi-core infra monstrantur:

Speculum electrica insulator perficientur probatio:
Impedimentum proprium 50 olim insulatori vitrei cum norma SMA, 2.92, 2.4, etc. connexiones millimetre undae ad utrumque finem iunguntur pro electricae operationis experimento..

RF SERIES

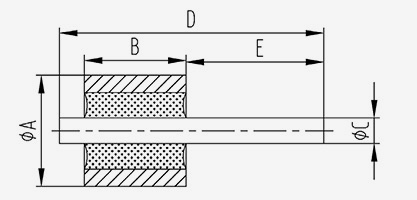

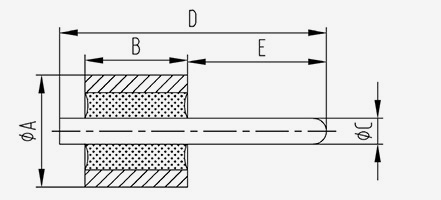

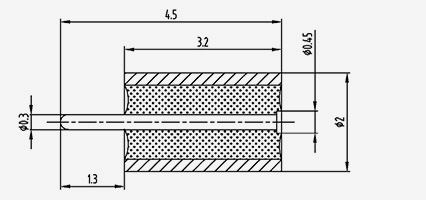

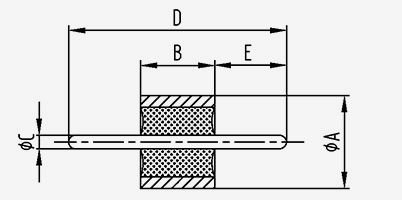

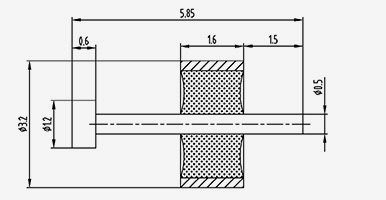

  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω

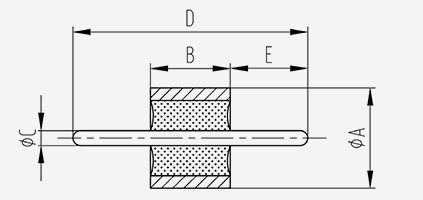

    Model Magnitudo (mm)
    A B C D E
    HS1710-0.23(2.8-0.3) 1.73 1 0.23 2.8 0.3
    HS1710-0.23(6.2-2.7) 1.73 1 0.23 6.2 2.7
    HS1710A 1.73 1 0.23 3 1
    HS1714-0.23(2-0.3) 1.73 1.4 0.23 2 0.3
    V1714-0.23(2.69-0.5) 1.73 1.4 0.23 2.7 0.5
    V1714-0.23(3.9-1.7) 1.73 1.4 0.23 3.9 1.7
    V1714-0.23(4.5-1.7) 1.73 1.4 0.23 4.5 1.7
    HS1714-0.23(3-1.1) 1.73 1.4 0.23 3 1.1
    HSI714E 1.73 1.4 0.23 2.9 1
    HS1714F 1.73 1.4 0.23 2.79 0.9
    HS1715-0.23 (3.2-0.8) 1.73 1.5 0.23 3.2 0.8
    HS1716A 1.73 1.65 0.23 3.4 1
    V1719-0.23(5.0-1.7) 1.73 1.9 0.23 5 1.7
    V1720-0.23(3.3-0.5) 1.73 2 0.23 3.3 0.5
    HS1720-0.23 (3.7-1.2) 1.73 2 0.23 3.7 1.2
    V1720-0.23(4.0-1.0) 1.73 2 0.23 4 1
    HS1720-0.23(6-2) 1.73 2 0.23 6 2
    V1724-0.23(3.7-0.5) 1.73 2.4 0.23 3.7 0.5
    HS1724-0.23(4.5-1.7) 1.73 2.4 0.23 4.5 1.7
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    V1727-0.23(4.0-0.5) 1.73 2.7 0.23 4 0.5
    HS1727A 1.73 2.7 0.23 4.7 1
    HS1728-0.23(4-0.5) 1.73 2.8 0.23 4 0.5
    HS1730-0.23(4.3-0.5) 1.73 3 0.23 4.3 0.5
    V1730-0.23(5.0-1.0) 1.73 3 0.23 5 1
    HS1734-0.23-01 1.73 3.4 0.23 5.2 1
    HS1744-0.23-01 1.73 4.4 0.23 6.2 1
    HS1749-0.23(8.9-2.0) 1.73 4.9 0.23 8.9 2
    HS1751A 1.73 5.1 0.23 5.9 0.4
    HS1756-0.23(6.6-0.5) 1.73 5.6 0.23 6.6 0.5
    HS1914-0.3(2.55-0.35) 1.9 1.4 0.3 2.55 0.35
    HS1914-0.3 (3.2-1.1) 1.9 1.4 0.3 3.2 1.1
    HS1914C 1.9 1.4 0.3 3.6 0.7
    HS1914-0.3(4.4-2) 1.9 1.4 0.3 4.4 2
    HS1914-0.3 (3.2-1.1) 1.9 1.4 0.3 3.2 1.1
    HS1914-0.3 (3.8-1.2) 1.9 1.4 0.3 3.8 1.2
    HS1914-0.3(4.4-2) 1.9 1.4 0.3 4.4 2
    HS1916-0.3(4.7-0.8) 1.9 1.6 0.3 4.7 0.8
    HS1916B 1.9 1.6 0.3 4.9 0.8
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    HS1917-0.3 (3.45-1) 1.9 1.75 0.3 3.45 1
    HS1918-0.3 (5.8-2) 1.9 1.8 0.3 5.8 2
    HS1918-0.3(7.8-4.2) 1.9 1.8 0.3 7.8 4.2
    HS1918-0.3 (3.5-1) 1.95 1.8 0.3 3.5 1
    HS1934-0.3(4.6-0.4) 1.9 3.4 0.3 4.6 0.4
    HS2006-0.3 (3.2-2) 2 0.6 0.3 3.2 2
    HS2008-0.3 (1.32-0.26) 2 0.8 0.3 1.32 0.26
    HS2008F 2 0.8 0.3 1.7 0.45
    HS2008-0.3 (1.8-0.3) 2 0.8 0.3 1.8 0.3
    HS2008-0.3(2.8-1.0) 2 0.8 0.3 2.8 1
    HS2008-0.3 (3.0-1.5) 2 0.8 0.3 3 1.5
    HS2008-0.3 (3.4-0.8) 2 0.8 0.3 3.4 0.8
    HS2008-0.3 (3.6-1.2) 2 0.8 0.3 3.6 1.2
    HS2008-0.3(5.4-2.6) 2 0.8 0.3 5.4 2.6
    HS2008-0.3(6-2.6) 2 0.8 0.3 6 2.6
    HS2010-0.3(2.1-0.7) 2 1 0.3 2.1 0.7
    HS2010-0.3(2.5-1) 2 1 0.3 2.5 1
    HS2010-0.3 (3.2-1.2) 2 1 0.3 3.2 1.2
    HS2011-0.3(2.1-0.5) 2 1.1 0.3 2.1 0.5
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Exemplar Magnitudo (mm)
    A B C D E
    HS2012A 2 1.2 0.3 3.5 1.2
    HS2012-0.3(6-1.8) 2 1.2 0.3 6 1.8
    HS2012-0.3(6.7-1.5) 2 1.2 0.3 6.7 1.5
    HS2013-0.3(2.3-0.5) 2 1.3 0.3 2.3 0.5
    HS2014-0.3 (1.92-0.26) 2 1.4 0.3 1.92 0.26
    HS2014-0.3(2.12-0.36) 2 1.4 0.3 2.12 0.36
    HS2014-0.3(2.4-0.5) 2 1.4 0.3 2.4 0.5
    HS2014D 2 1.4 0.3 3.1 0.45
    HS2014-0.3(4.4-1.5) 2 1.4 0.3 4.4 1.5
    HS2014-0.3(4.4-1) 2 1.4 0.3 4.4 1
    HS2014-0.3(4.55-1.5) 2 1.4 0.3 4.55 1.5
    HS2014-0.3(4.65-1.5) 2 1.4 0.3 4.65 1.5
    HS2014-0.3 (5.5-1.9) 2 1.4 0.3 5.5 1.9
    HS2014-0.3 (5.7-1.8) 2 1.4 0.3 5.7 1.8
    HS2014-0.3(8.0-4.6) 2 1.4 0.3 8 4.6
    HS2014-0.3(8-1.9) 2 1.4 0.3 8 1.9
    HS2015-0.3 (3.25-0.75) 2 1.5 0.3 3.25 0.75
    HS2016-0.3(2.7-0.7) 2 1.6 0.3 2.7 0.7
    HS2016-0.3(2.8-0.5) 2 1.6 0.3 2.8 0.5
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    HS2016-0.3 (3.5-1.2) 2 1.6 0.3 3.5 1.2
    HS2016-0.3 (3.6-1) 2 1.6 0.3 3.6 1
    HS2016-0.3 (3.9-0.4) 2 1.6 0.3 3.9 0.4
    HS2016E 2 1.6 0.3 3.9 0.6
    HS2016-0.3(4.1-1) 2 1.6 0.3 4.1 1
    HS2016-0.3(4.2-0.8) 2 1.6 0.3 4.2 0.8
    HS2016-0.3(4.6-1.2) 2 1.6 0.3 4.6 1.2
    HS2016-0.3 (4.6-1.8) 2 1.6 0.3 4.6 1.8
    Ka2016-0.3(5-2.9) 2 1.6 0.3 5 2.9
    HS2016-0.3 (5.2-1.8) 2 1.6 0.3 5.2 1.8
    HS2016-0.3(8.0-4.6) 2 1.6 0.3 8 4.6
    HS2016-0.3(8-1.8) 2 1.6 0.3 8 1.8
    HS2016-0.3 (12-2.4) 2 1.6 0.3 12 2.4
    HS2016-0.3(20.4-4.6) 2 1.6 0.3 20.4 4.6
    HS2017-0.3 (3.3-0.8) 2 1.7 0.3 3.3 0.8
    HS2017-0.3(8.5-2.0) 2 1.7 0.3 8.5 2
    HS2018-0.3 (3.5-1) 2 1.8 0.3 3.5 1
    HS2019-0.3-01 2 1.9 0.3
    HS2020-0.3(3.4-0.4) 2 2 0.3 3.4 0.4
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Exemplar Magnitudo (mm)
    A B C D E
    HS2020-0.3 (3.8-0.8) 2 2 0.3 3.8 0.8
    HS2020-0.3 (5.6-2.8) 2 2 0.3 5.6 2.8
    HS2020-0.3 (5.7-2.9) 2 2 0.3 5.7 2.9
    HS2020-0.3(6-2) 2 2 0.3 6 2
    HS2020-0.3(12-5) 2 2 0.3 12 5
    HS2022F 2 2.2 0.3 3.1 0.45
    HS2022-0.3 (3.2-0.7) 2 2.2 0.3 3.2 0.7
    HS2023-0.3 (3.35-0.7) 2 2.3 0.3 3.35 0.7
    HS2023-0.3 (3.7-0.7) 2 2.3 0.3 3.7 0.7
    HS2025-0.3(4.8-0.9) 2 2.5 0.3 4.8 0.9
    HS2025-0.3(6-1.5) 2 2.5 0.3 6 1.5
    HS2025-0.38(7.4-1.4) 2 2.5 0.38 7.4 1.4
    HS2026.5-0.3-01 2 2.6 5 0.3 0.1
    HS2028-0.3(4.9-0.5) 2 2.8 0.3 4.9 0.5
    HS2029-0.3 (4.1-0.8) 2 2.9 0.3 4.1 0.8
    HS2029-0.3(4.9-0.5) 2 2.9 0.3 4.9 0.5
    HS2030-0.3 (5.2-1.5) 2 3 0.3 5.2 1.5
    HS2030-0.3 (5.8-1) 2 3 0.3 5.8 1
    HS2030-0.3(8-2) 2 3 0.3 8 2
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    HS2030-0.3(9-1.5) 2 3 0.3 9 1.5
    HS2034-0.3(4.4-0.7) 2 3.4 0.3 4.4 0.7
    HS2035-0.3(6.6-1.8) 2 3.5 0.3 6.6 1.8
    HS2035-0.3(6.65-1.3) 2 3.5 0.3 6.65 1.3
    HS2035-0.3(7.1-1.3) 2 3.5 0.3 7.1 1.3
    HS2035-0.3(9.5-3) 2 3.5 0.3 9.5 3
    HS2036-0.3 (5.7-0.7) 2 3.6 0.3 5.7 0.7
    HS2040A 2 4 0.3 5.1 0.8
    HS2045-0.7 (11.5-2) 2 4.5 0.7 11.5 2
    HS2050-0.3(6.4-0.7) 2 5 0.3 6.4 0.7
    HS2507-0.38(2.2-0.3) 2.5 0.7 0.38 2.2 0.3
    HS2508-0.38 (1.8-0.3) 2.5 0.8 0.38 1.8 0.3
    HS2508-0.38(2-0.5) 2.5 0.8 0.38 2 0.5
    HS2510-0.38 (3.6-1.3 ) 2.5 1 0.38 3.6 1.3
    HS2510-0.38(7-3) 2.5 1 0.38 7 3
    HS2511-0.38(2..4-0.5) 2.5 1.1 0.38 2.4 0.5
    HS2511-0.38 (3.7-0.6) 2.5 1.1 0.38 3.7 0.6
    HS2512-0.38 (3.1-0.8) 2.5 1.1 0.38 3.7 0.6
    HS4414-0.3(3.2-1.1) 4.4 1.4 0.3 3.2 1.1
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    HS2516-0.3(7.5-2.14) 2.5 1.6 0.3 7.5 2.14
    HS2516-0.3(8-1.8) 2.5 1.6 0.3 8 1.8
    HS2516-0.38 (3.5-0.7) 2.5 1.6 0.38 3.5 0.7
    HS2516-0.38(4.1-1.25) 2.5 1.6 0.38 4.1 1.25
    HS2516-0.38(4.3-1.2) 2.5 1.6 0.38 4.3 1.2
    Ka2511-0.38(2.7-1.0) 2.5 1.1 0.38 2.7 1
    Ka2516-0.38(2.9-0.3) 2.5 1.6 0.38 2.9 0.3
    K2516-0.38(4-1.5) 2.5 1.6 0.38 4 1.5
    HS2516-0.38(4.5-1.2) 2.5 1.6 0.38 4.5 1.2
    HS2516-0.38(4.6-1) 2.5 1.6 0.38 4.6 1
    HS2516E 2.5 1.6 0.38 4.6 1.5
    HS2516G 2.5 1.6 0.38 4.6 1.5
    HS2516-0.38(4.8-1.2) 2.5 1.6 0.38 4.8 1.2
    HS2516-0.38(4.9-1.5) 2.5 1.6 0.38 4.9 1.5
    HS2516-0.38 (5.1-1.6) 2.5 1.6 0.38 5.1 1.6
    HS2516-0.38 (5.3-1.2) 2.5 1.6 0.38 5.3 1.2
    Ka2516-0.38 (5.6-3.0) 2.5 1.6 0.38 5.6 3
    HS2516-0.38(6.1-1.3) 2.5 1.6 0.38 6.1 1.3
    HS2516-0.38(7.1-1.4) 2.5 1.6 0.38 7.1 1.4
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    HS2516-0.38(7.41-1.27) 2.5 1.6 0.38 7.41 1.27
    HS2516F 2.5 1.6 0.38 7.45 4.55
    HS2516-0.38-01 2.5 1.6 0.38 7.5 1.3
    HS2516-0.38(8-1.8) 2.5 1.6 0.38 8 1.8
    RF2516-0.38(8-4.6) 2.5 1.6 0.38 8 4.6
    HS2516-0.38(8-5) 2.5 1.6 0.38 8 5
    K2516-0.38(8-1.5) 2.5 1.6 0.38 8 1.5
    K2516-0.38(8-5.9) 2.5 1.6 0.38 8 5.9
    HS2516-0.38 (11.6-5) 2.5 1.6 0.38 11.6 5
    HS2516-0.38(12-2.0) 2.5 1.6 0.38 12 2
    HS2520-0.38(6-2) 2.5 2 0.38 6 2
    HS2520-0.38(7.4-1.4) 2.5 2 0.38 7.4 1.4
    HS2520-0.38(7.8-1.4) 2.5 2 0.38 7.8 1.4
    HS2520-0.38(9.0-2.0) 2.5 2 0.38 9 2
    HS2520-0.38(12-5) 2.5 2 0.38 12 5
    HS2520-0.38(15-2) 2.5 2 0.38 15 2
    HS2524-0.38 (5.7-1.1) 2.5 2.4 0.38 5.7 1.1
    HS2526-0.38(6.6-2) 2.5 2.6 0.38 6.6 2
    HS2530-0.38(3.6-0.3) 2.5 3 0.38 3.6 0.3
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Exemplar Magnitudo (mm)
    A B C D E
    Ka2530-0.38 (4.6-1.0) 2.5 3 0.38 4.6 1
    HS2530A 2.5 3 0.38 5 1
    HS2530-0.38(7.5-1.5) 2.5 3 0.38 7.5 1.5
    HS2530-0.38(8-0.4) 2.5 3 0.38 8 0.4
    HS2530-0.38(8-2) 2.5 3 0.38 8 2
    HS2530-0.38(9-3) 2.5 3 0.38 9 3
    HS2530-0.38 (12-2.2) 2.5 3 0.38 12 2.2
    HS2530-0.38 (13.9-8.2) 2.5 3 0.38 13.9 8.2
    HS2530-0.38(20-4) 2.5 3 0.38 20 4
    HS2533-0.38(6.5-1.2) 2.5 3.3 0.38 6.5 1.2
    HS2535-0.38(7.5-2) 2.5 3.5 0.38 7.5 2
    HS2537-0.38(7.7-2) 2.5 3.7 0.38 7.7 2
    HS2540-0.38 (11-1.8) 2.5 4 0.38 11 1.8
    HS2545-0.38(8-1.3) 2.5 4.5 0.38 8 1.3
    HS2550-0.38(6.9-1.5) 2.5 5 0.38 6.9 1.5
    HS2550-0.38(11-2) 2.5 5 0.38 11 2
    HS2558-0.38(14.8-6) 2.5 5.8 0.38 14.8 6
    HS2575-0.38(12-1.3) 2.5 7.5 0.38 12 1.3
    HS2810-0.45(3.3-0.35) 2.8 1 0.45 3.3 0.35
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Exemplar Magnitudo (mm)
    A B C D E
    HS2815-0.45(5.75-1.25) 2.8 1.5 0.45 5.75 1.25
    HS2816-0.45(4.6-1.5) 2.8 1.6 0.45 4.6 1.5
    HS2816-0.45(4.9-1.8)-R 2.8 1.6 0.45 4.9 1.8
    HS2816-0.45(5.1-1.5) 2.8 1.6 0.45 5.1 1.5
    HS2816-0.45(5.2-1.1) 2.8 1.6 0.45 5.2 1.1
    HS2816-0.45(5.4-2) 2.8 1.6 0.45 5.4 2
    HS2816-0.45(5.6-2) 2.8 1.6 0.45 5.6 2
    HS2816-0.45(6.2-1.8) 2.8 1.6 0.45 6.2 1.8
    HS2816-0.45(8.0-4.6) 2.8 1.6 0.45 8 4.6
    HS2816-0.45(8-1.8) 2.8 1.6 0.45 8 1.8
    HS2816-0.45 (11.6-5) 2.8 1.6 0.45 11.6 5
    HS2816-0.45(12-3.0) 2.8 1.6 0.45 12 3
    HS2831-0.45(5.2-1.8) 2.8 3.1 0.45 5.2 1.8
    HS2843-0.45(8.3-2) 2.8 4.3 0.45 8.3 2
    HS3015-0.5(4.3-0.8) 3 1.5 0.5 4.3 0.8
    HS3016-0.5 (3.4-0.9) 3 1.6 0.5 3.4 0.9
    HS3016-0.5(4.6-1) 3 1.6 0.5 4.6 1
    HS3016-0.5(4.6-1.5) 3 1.6 0.5 4.6 1.5
    HS3016B 3 1.6 0.38 4.9 1.8
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    HS3016-0.5 (5.6-2) 3 1.6 0.5 5.6 2
    HS3016C 3 1.6 0.5 6.6 2
    HS3016-0.5(6.6-2.5) 3 1.6 0.5 6.6 2.5
    HS3016-0.5(7.5-2) 3 1.6 0.5 7.5 2
    HS3016-0.5(7.5-3.9) 3 1.6 0.5 7.5 3.9
    HS3016-0.5(7.8-2.0) 3 1.6 0.5 7.8 2
    HS3016-0.5(9.65-3.05) 3 1.6 0.5 9.65 3.05
    HS3016-0.5(12-5.0) 3 1.6 0.5 12 5
    HS3016-0.5(14.3-1.5) 3 1.6 0.5 14.3 1.5
    HS3020-0.5(5-1.8) 3 2 0.5 5 1.8
    HS3020-0.5(6.0-1.5) 3 2 0.5 6 1.5
    HS3020-0.5(6.5-2.2) 3 2 0.5 6.5 2.2
    HS3020-0.5(6.5-2.3) 3 2 0.5 6.5 2.3
    HS3020-0.5(6.8-1.8) 3 2 0.5 6.8 1.8
    HS3020-0.5(7.5-2.2) 3 2 0.5 7.5 2.2
    HS3020-0.5(8-2) 3 2 0.5 8 2
    HS3020-0.5(8.5-2.2) 3 2 0.5 8.5 2.2
    HS3020-0.5(8.5-4.3) 3 2 0.5 8.5 4.3
    HS3020-0.5(10-4) 3 2 0.5 10 4
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Exemplar Magnitudo (mm)
    A B C D E
    HS3020-0.5(10-1.5) 3 2 0.5 10 1.5
    HS3020-0.5(12-4.0) 3 2 0.5 12 4
    HS3020-0.5(12-5.0) 3 2 0.5 12 5
    HS3020-0.5 (12-6) 3 2 0.5 12 6
    HS3020-0.5(15-2) 3 2 0.5 15 2
    HS3025-0.5 (5.4-1.2) 3 2.5 0.5 5.4 1.2
    HS3030A 3 3 0.38 10 1.5
    HS3030-0.5(6.5-2) 3 3 0.5 6.5 2
    HS3030-0.5(6.6-1.8) 3 3 0.5 6.6 1.8
    HS3030-0.5(7.5-2)-R 3 3 0.5 7.5 2
    HS3030-0.5(8.8-1.8) 3 3 0.5 8.8 1.8
    HS3030-0.5(10-2) 3 3 0.5 10 2
    HS3030-0.5(12-3) 3 3 0.5 12 3
    HS3030-0.5 (12-2) 3 3 0.5 12 2
    HS3030-0.5(14-4.0) 3 3 0.5 14 4
    HS3035-0.5(6-1) 3 3.5 0.5 6 1
    HS3035-0.5 (11.5-4) 3 3.5 0.5 11.5 4
    HS3040A 3 4 0.5 10.4 4
    HS3042-0.5(9.0-2.2) 3 4.2 0.5 9 2.2
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Exemplar Magnitudo (mm)
    A B C D E
    HS3045-0.5(8.5-2) 3 4.5 0.5 8.5 2
    HS3047-0.5(9.4-2.2) 3 4.7 0.5 9.4 2.2
    HS3047-0.5(12-5.1) 3 4.7 0.5 12 5.1
    HS3050-0.5(9-2) 3 5 0.5 9 2
    HS3052A 3 5.2 0.5 10.3 4
    HS3057-0.5 (12.5-3) 3 5.7 0.5 12.5 3
    HS3620-0.5(9-2.5) 3.6 2 0.5 9 2.5
    HS3616-0.6 (12.2-1.6) 3.6 1.6 0.6 12.2 1.6
    HS3625-0.6(6.5-2) 3.6 2.5 0.6 6.5 2
    HS2540-0.8(27-5) 2.5 4 0.8 27 5
    HS4030A 4 3 1 10.6 4.6
    HS5010-0.8 (5.9-2.45) 5 1 0.8 5.9 2.45
    HS5015-0.8(7.3-4.9) 5 1.5 0.8 7.3 4.9
    HS5016B 5 1.6 0.8 5.6 2
    HS5016-0.8(8.6-3.0) 5 1.6 0.8 8.6 3
    HS5030-0.8 (17.2-2) 5 3 0.8 17.2 2
    HS5040-0.8 (12-3) 5 4 0.8 12 3
    HS5060-0.8 (11.5-2.5) 5 6 0.8 11.5 2.5
    HS5065-0.8 (13.7-3) 5 6.5 0.8 13.7 3
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    HS5065-0.8 (15.5-3) 5 6.5 0.8 15.5 3
    HS5516-0.9(8.3-2.8) 5.5 1.6 0.9 8.3 2.8
    HS5516-0.9(8.5-2.8) 5.5 1.6 0.9 8.5 2.8
    HS5516-0.9(8.7-2.8) 5.5 1.6 0.9 8.7 2.8
    HS5516-0.9(8.9-2.8) 5.5 1.6 0.9 8.9 2.8
    HS5516-0.9(9.1-2.8) 5.5 1.6 0.9 9.1 2.8
    HS5516-0.9 (11.9-2.8) 5.5 1.6 0.9 11.9 2.8
    HS5516-0.9 (12.6-2) 5.5 1.6 0.9 12.6 2
    HS5516-0.9 (13.8-2.8) 5.5 1.6 0.9 13.8 2.8
    HS5525-0.9(9.7-1.6) 5.5 2.5 0.9 9.7 1.6
    HS5525-0.9(16-5) 5.5 2.5 0.9 16 5
    HS5530-0.9(8.8-2.3) 5.5 3 0.9 8.8 2.3
    HS5530-0.9(9.6-2.3) 5.5 3 0.9 9.6 2.3
    HS5530-0.9 (13.8-2.8) 5.5 3 0.9 13.8 2.8
    HS5530A 5.5 3 1.35 13.5 7.5
    HS5530B 5.5 3 1.35 13.8 7.8
    HS6016-1.0(8.5-1.5) 6 1.6 1 8.5 1.5
    HS6840-0.9(7-1.5) 6.8 4 0.9 7 1.5
    HS8330-1.3(13-5) 8.3 3 1.3 13 5
  • Impedimentum proprium 50Ω - nucleum unum plana caput
    Impedimentum proprium 50Ω - nucleum unum plana caput
    Model Magnitudo (mm)
    A B C D E
    Ka2008-0.3 (1.4-0.3) 2 0.8 0.3 1.4 0.3
    HS2008-0.3 (1.65-0.35) 2 0.8 0.3 1.65 0.35
    Ka2008-0.3 (1.8-0.3) 2 0.8 0.3 1.8 0.3
    HS2010-0.3 (1.9-0.35) 2 1 0.3 1.9 0.35
    HS2010-0.3(2-0.5) 2 1 0.3 2 0.5
    HS2010-0.3(2.5-0.5) 2 1 0.3 2.5 0.5
    HS2013-0.3(2.4-0.4) 2 1.3 0.3 2.4 0.4
    HS2014-0.3(2.6-0.4) 2 1.4 0.3 2.6 0.4
    HS2014E 2 1.4 0.3 2.3 0.45
    HS2014F 2 1.4 0.3 2.35 0.5

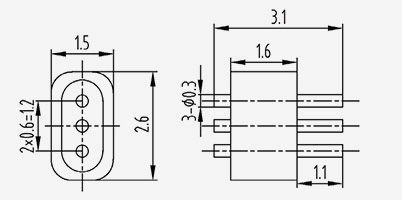

    HS2016-0.3-01 2 1.6 0.3 3.1 1
    HS2016-0.3 (3.3-0.7) 2 1.6 0.3 3.3 0.7
    HS2016-0.3-02 2 1.6 0.3 3.3 1
    HS2016-0.3 (5.6-2) 2 1.6 0.3 5.6 2
    HS2019-0.3(3-0.35) 2 1.9 0.3 3 0.35
    HS2020-0.3-02 2 2 0.3 3.5 0.5
    HS2020-0.3 (3.6-0.8) 2 2 0.3 3.6 0.8
    HS2030-0.3(4.2-0.7) 2 3 0.3 4.2 0.7
  • Core rotundum, unum caput, proprium impedimentum 50Ω
    Core rotundum, unum caput, proprium impedimentum 50Ω
    Model Magnitudo (mm)
    A B C D E
    HS8740-1.38(8.4-3.2) 8.7 4 1.38 8.4 3.2
    HS9430-1.5(9-3) 9.4 3 1.5 9 3
    HS9430-1.5 (11-4) 9.4 3 1.5 11 4
    HS9640-1.5(9.2-3.2) 9.6 4 1.5 9.2 3.2
    HS10050-1.7 (15-5) 10 5 1.7 15 5
    HS130100-3(18-4) 13 10 3 18 4
  • Impedimentum Proprium 50Ω - Single Core Round Tip
    Impedimentum Proprium 50Ω - Single Core Round Tip
    Exemplar Magnitudo (mm)
    A B C D E
    HS2330-0.23(5.3-0.3) 2.3 3 0.23 5.3 0.3
    HS2815-0.3 (5.2-1.2) 2.8 1.5 0.3 5.2 1.2
    HS2815-0.3(7.2-1.2) 2.8 1.5 0.3 7.2 1.2
    HS2635-0.3(7.1-1.3) 2.6 3.5 0.3 7.1 1.3
    HS3822-0.5(14.4-3.7) 3.8 2.2 0.5 14.4 3.7
    HS3525-0.5 (11.5-6) 3.5 2.5 0.5 11.5 6
  • Impedimentum proprium 50Ω - nucleum unum plana caput
    Impedimentum proprium 50Ω - nucleum unum plana caput
    Model Magnitudo (mm)
    A B C D E
    HS2516-0.38(5.1-2) 2.5 1.6 0.38 5.1 2
    HS2516-0.38(7.37-4.5) 2.5 1.6 0.38 7.37 4.5
    HS2517-0.38-01 2.5 1.7 0.38 2.7 0.65
    HS2520-0.38 (3.2-0.5) 2.5 2 0.38 3.2 0.5
    HS2525-0.38-01 2.5 2.5 0.38 3.65 0.65
    HS2530-0.38(7.5-2.5) 2.5 3 0.38 7.5 2.5
    HS2816-0.45(4.9-1.8) 2.8 1.6 0.45 4.9 1.8
    HS2816-0.45-01 2.8 1.6 0.45 5 3
    HS2816-0.45(6-1.5) 2.8 1.6 0.45 6 1.5
    HS3030-0.5(7.5-2) 3 3 0.5 7.5 2
  • Impedimentum proprium 50Ω - nucleum unum plana rotunda tip
    Impedimentum proprium 50Ω - nucleum unum plana rotunda tip
    Exemplar Magnitudo (mm)
    A B C D E
    HS2006-0.3 (3.1-1.8) 2 0.6 0.3 3.1 1.8
    HS2010-0.3 (3.5-2) 2 1 0.3 3.5 2
    HS2020-0.3-01 2 2 0.3 3.7 0.6
    HS2035-0.3(6.4-1.8) 2 3.5 0.3 6.4 1.8
    HS2816-0.45 (11.7-7.6) 2.8 1.6 0.45 11.7 7.6
    HS3020-0.5(10-6.5) 3 2 0.5 10 6.5
    HS3216-0.5(7.1-4) 3.2 1.6 0.5 7.1 4
    HS6448-1.0(10.2-3.5) 6.4 4.8 1 10.2 3.5
  • Ka2032-0.3 (4.5-1.3)
    Ka2032-0.3 (4.5-1.3)
    Exemplar
    Ka2032-0.3 (4.5-1.3)

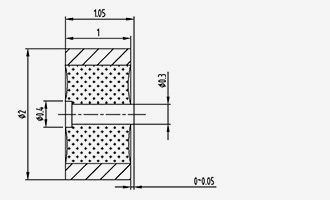

  • K2010-0.3(1.05-0.05)
    K2010-0.3(1.05-0.05)
    Model
    K2010-0.3(1.05-0.05)
  • HS2510-0.3-02
    HS2510-0.3-02
    Exemplar
    HS2510-0.3-02

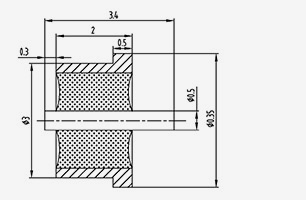

  • HS3520-0.5 (3.4-0.3)
    HS3520-0.5 (3.4-0.3)
    Exemplar
    HS3520-0.5(3.4-0.3)
  • Ka3216-0.5 (5.85-1.5)
    Ka3216-0.5 (5.85-1.5)
    Exemplar
    Ka3216-0.5 (5.85-1.5)
  • K2515-0.38(2.9-0.3)
    K2515-0.38(2.9-0.3)
    Model
    K2515-0.38(2.9-0.3)
  • 2-K482515-0.38(2.9-0.3)
    2-K482515-0.38(2.9-0.3)
    Model
    2-K482515-0.38(2.9-0.3)
  • KW2016-0.3(0.7-1.6)
    KW2016-0.3(0.7-1.6)
    Exemplar
    KW2016-0.3(0.7-1.6)
  • KW2016-0.3(1-2.2)
    KW2016-0.3(1-2.2)
    Model
    KW2016-0.3(1-2.2)
  • KW2025-0.3(1-2.2)
    KW2025-0.3(1-2.2)
    Exemplar
    KW2025-0.3(1-2.2)
  • JPW2040-0.3-01
    JPW2040-0.3-01
    Model
    JPW2040-0.3-01
  • KW2018-0.3(0.95-2.1)
    KW2018-0.3(0.95-2.1)
    Exemplar
    KW2018-0.3(0.95-2.1)
  • Non-50Ω Proprium Impedimentum-Single Core Round consilium
    Non-50Ω Proprium Impedimentum-Single Core Round consilium
    Exemplar Magnitudo (mm)
    A B C D E
    JD1515-0.4(5-1.5) 1.5 1.5 0.4 5 5
    JD1615-0.4(8-1.9) 1.6 1.5 0.4 8 8
    JD1616-0.4(30-14.2) 1.6 1.6 0.4 30 30
    JD1614-0.45 (11.4-5) 1.6 1.4 0.45 11.4 11.4
    JD1616-0.45(4.65-1.05) 1.6 1.6 0.45 4.65 4.65
    JD1616-0.45(16-4) 1.6 1.6 0.45 16 16
    JD1616-0.45(30-14.2) 1.6 1.6 0.45 30 30
    JD2020-0.45(6.3-3) 2 2 0.45 6.3 6.3
    JD2020-0.45(10-4) 2 2 0.45 10 10
    JD1614-0.5(9-4) 1.6 1.4 0.5 9 9
    JD1616-0.5(30-14.2) 1.6 1.6 0.5 30 30
    JD1619-0.5 (5.1-2) 1.6 1.9 0.5 5.1 5.1
    HS2015-0.5(7.5-3) 2 1.5 0.5 7.5 7.5
    JD2016-0.5(12-5.8)-R 2 1.6 0.5 12 12
    HS2018-0.5(9.5-1.5) 2 1.8 0.5 9.5 9.5
    HS2018-0.5 (11.5-7.2) 2 1.8 0.5 11.5 11.5
    HS2030-0.5(10-2) 2 3 0.5 10 10
    JD1919-0.6(7.9-1.9)-R 1.9 1.9 0.6 7.9 7.9
  • Non-50Ω Proprium Impedimentum-Single Core Round consilium
    Non-50Ω Proprium Impedimentum-Single Core Round consilium
    Model Magnitudo (mm)
    A B C D E
    HS2040-0.6(6-1) 2 4 0.6 6 1
    JD1818-0.7(10-6) 1.8 1.8 0.7 10 6
    JD1818-0.7(22.2-0.4) 1.8 1.8 0.7 22.2 0.4
    HS2016-0.7 (4.6-1.5) 2 1.6 0.7 4.6 1.5
    HS2016-0.7(6.3-1.5) 2 1.6 0.7 6.3 1.5
    HS2016-0.7(7.1-1.5)-R 2 1.6 0.7 7.1 1.5
    HS2016-0.7(7.6-1.5) 2 1.6 0.7 7.6 1.5
    HS2016-0.7(9.6-4) 2 1.6 0.7 9.6 4
    K2016-0.7 (11-4.6) 2 1.6 0.7 11 4.6
    HS2016-0.7 (11.6-5) 2 1.6 0.7 11.6 5
    HS2016-0.7 (17-15.1) 2 1.6 0.7 17 15.1
    HS2016-0.7(20-0.3) 2 1.6 0.7 20 0.3
    HS2017-0.7(9.7-3) 2 1.7 0.7 9.7 3
    HS2035-0.7 (13-3) 2 3.5 0.7 13 3
    HS2020-0.75 (12-4) 2 2 0.75 12 4
    HS2015-0.8(6.5-3) 2 1.5 0.8 6.5 3
    JD2015-0.8 (10.5-3) 2 1.5 0.8 10.5 3
    JD2063-0.5(10.3-2) 2 6.3 0.5 10.3 2
  • Non-50Ω Proprium Impedimentum-Single Core Round consilium
    Non-50Ω Proprium Impedimentum-Single Core Round consilium
    Model Magnitudo (mm)
    A B C D E
    JD2518-0.8 (12.8-5) 2.5 1.8 0.8 12.8 5
    JD2520-0.8 (14-4) 2.5 2 0.8 14 4
    JD2540-0.8(10-4) 2.5 4 0.8 10 4
    JD3218-0.8(51.8-20) 3.2 1.8 0.8 51.8 20
    JD2530-0.9(6.6-1.8) 2.5 3 0.9 6.6 1.8
    JD2540A 2.5 4 0.8 10 4
    JD2816-1(6.6-2) 2.8 1.6 1 6.6 2
    K2816-1.0(16-10) 2.8 1.6 1 16 10
    JD3218-1(27-15) 3.2 1.8 1 27 15
    JD3015-1.3(10.2-6.1) 3 1.5 1.3 10.2 6.1
    JD3015-1.3(10.5-3) 3 1.5 1.3 10.5 3
    JD3430-1.4(10.5-4.5) 3.4 3 1.4 10.5 4.5
    JD12940-1.7(10-3) 12.9 4 1.7 10 3
    JD3916-2(6.6-2) 3.9 1.6 2 6.6 2
  • Non-50Ω proprium impedimentum-uno core plana caput
    Non-50Ω proprium impedimentum-uno core plana caput
    Model Magnitudo (mm)
    A B C D E
    JD1510-0.3-01 1.5 1 0.3 5.5 1.5
    JD1315-0.35-01 1.3 1.5 0.35 3.5 0.3
    JD1515-0.4(4.5-0.5) 1.5 1.5 0.4 4.5 0.5
    JD1516-0.4-01 1.5 1.6 0.4 14.6 1
    JD1615-0.5(7-0.5) 1.6 1.5 0.5 7 0.5
    JD1619-0.5(8.7-3) 1.6 1.9 0.5 8.7 3
    JD1619-0.5(10.3-4.6) 1.6 1.9 0.5 10.3 4.6
    JD2016-0.5(4.5-0.6) 2 1.6 0.5 4.5 0.6
    JD2016-0.5(12-5.8) 2 1.6 0.5 12 5.8
    JD2020-0.5-01 2 2 0.5 5.2 0.5
    JD2044-0.5(6.3-0.4) 2 4.4 0.5 6.3 0.4
    JD1919-0.6(7.9-1.9) 1.9 1.9 0.6 7.9 1.9
    RF2010-0.7(6.0-3.0) 2 1 0.7 6 3
    JD2015-0.8(6.5-3) 2 1.5 0.8 6.5 3
    RF2016-0.8(6.6-4.5) 2 1.6 0.8 6.6 4.5
    JD2816-1(10.3-4.9) 2.8 1.6 1 10.3 4.9
  • Non-50Ω Proprium Impedimentum-Single Core Flat Round consilium
    Non-50Ω Proprium Impedimentum-Single Core Flat Round consilium
    Exemplar Magnitudo (mm)
    A B C D E
    RF1515-0.38(2.9-0.3) 1.5 1.5 0.38 2.9 0.3
    JD1614-0.5 (17.9-0.5) 1.6 1.4 0.5 17.9 0.5
    JD1615-0.5(9-2.5) 1.6 1.5 0.5 9 2.5
    JD2016-0.7(8.1-4.5) 2 1.6 0.7 8.4 4.5
    JD2040-0.6(10-4.5) 2 4 0.6 10 4.5
    JD2016-0.7(9.1-2.5) 2 1.6 0.7 9.1 2.5
    JD2035-0.7(22-3) 2 3.5 0.7 22 3

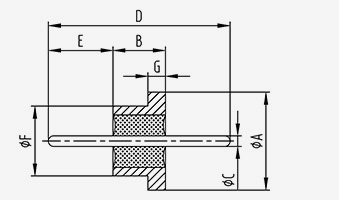

  • Impedimentum Non-50Ω Proprium - Type Nail Caput
    Impedimentum Non-50Ω Proprium - Type Nail Caput
    Exemplar Magnitudo (mm)
    A B C D E F G
    JD1616-0.45(4.2-1.5) 1.4 1.5 4.2 0.45 1.6 0.8 0.3
    JD1614-0.45(6.2-0.8) 1.4 0.8 6.2 0.45 1.6 0.8 0.3
    JD1614-0.45(6.9-1.5) 1.4 1.5 6.9 0.45 1.6 0.8 0.2
    JD1620-0.45(7-1) 2 1 7 0.45 1.6 1 0.3
    JD1630-0.5(7.5-0.5) 3 0.5 7.5 0.5 1.6 0.6 0.2
    JD1630-0.5(10.5-0.5) 3 0.5 10.5 0.5 1.6 0.6 0.2
    JD1816-0.5(20-0.5) 1.6 0.5 20 0.5 1.8 0.7 0.3
    JD2020B 2 2 0.6 5.7 1
  • JP2016-0.7(7.1-1.5)
    JP2016-0.7(7.1-1.5)
    Exemplar
    JP2016-0.7(7.1-1.5)

    Exemplar Magnitudo (mm)
    A B C D E F G
    JD1614-0.45(6.9-1.5)-R 1.4 1.5 6.9 0.45 1.6 0.8 0.2
    JD1630-0.5(7.5-0.5)-R 3 0.5 7.5 0.5 1.6 0.6 0.2
  • Impedimentum Non-50Ω Proprium - Type Nail Caput
    Impedimentum Non-50Ω Proprium - Type Nail Caput
    Exemplar Magnitudo (mm)
    A B C D E F G
    JD1614-0.45(6.9-1.5)-R 1.4 1.5 6.9 0.45 1.6 0.8 0.2
    JD1630-0.5(7.5-0.5)-R 3 0.5 7.5 0.5 1.6 0.6 0.2
  • JD1516-0.4-02
    JD1516-0.4-02
    Exemplar
    JD1516-0.4-02
  • RF1816-0.8(6.6-4.5)-2
    RF1816-0.8(6.6-4.5)-2
    Exemplar
    RF1816-0.8(6.6-4.5)-2

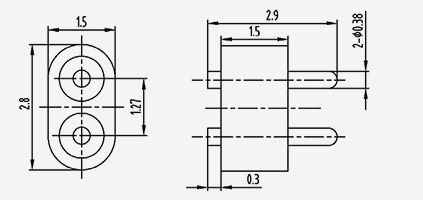

  • 2-RF281515-0.38(2.9-0.3)
    2-RF281515-0.38(2.9-0.3)
    Exemplar
    2-RF281515-0.38(2.9-0.3)
  • 2-RF301516-0.5(5.85-1.5)
    2-RF301516-0.5(5.85-1.5)
    Model
    2-RF301516-0.5(5.85-1.5)
  • JD301520-0.5-01
    JD301520-0.5-01
    Exemplar
    JD301520-0.5-01
  • JD301515-0.5-01
    JD301515-0.5-01
    Model
    JD301515-0.5-01
  • JD201315-0.35-01
    JD201315-0.35-01
    Exemplar
    JD301515-0.5-01
  • JD271516-0.4-02
    JD271516-0.4-02
    Model
    JD271516-0.4-02
  • JD271516-0.4-01
    JD271516-0.4-01
    Model
    JD271516-0.4-01
  • JD2615-0.35-01
    JD2615-0.35-01
    Model
    JD2615-0.35-01
  • 3-RF411515-0.38(2.9-0.3)
    3-RF411515-0.38(2.9-0.3)
    Model
    3-RF411515-0.38(2.9-0.3)
  • 3-RF421516-0.5(5.85-1.5)
    3-RF421516-0.5(5.85-1.5)
    Exemplar
    3-RF421516-0.5(5.85-1.5)
  • JD261516-0.3-01
    JD261516-0.3-01
    Exemplar
    JD261516-0.3-01
  • JD391516-0.4-01
    JD391516-0.4-01
    Exemplar
    JD391516-0.4-01
  • JD2815-0.35-01
    JD2815-0.35-01
    Exemplar
    JD2815-0.35-01

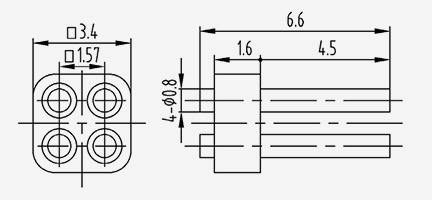

  • RF3416-0.8(6.6-4.5)-4
    RF3416-0.8(6.6-4.5)-4
    Model
    RF3416-0.8(6.6-4.5)-4
  • 4-RF3416-0.5 (5.85-1.5)
    4-RF3416-0.5 (5.85-1.5)
    Exemplar
    4-RF3416-0.5(5.85-1.5)
  • JD341315-0.35-01
    JD341315-0.35-01
    Model
    JD341315-0.35-01
  • JD272716-0.4-01
    JD272716-0.4-01
    Exemplar
    JD272716-0.4-01
  • JD511516-0.4-01
    JD511516-0.4-01
    Exemplar
    JD511516-0.4-01
  • JD2016-0.3-01
    JD2016-0.3-01
    Model
    JD2016-0.3-01
  • JD3115-0.35-01
    JD3115-0.35-01
    Model
    JD3115-0.35-01
  • JD631516-0.4-01
    JD631516-0.4-01
    Model
    JD631516-0.4-01
  • RF1816-0.8(6.6-4.5)-6
    RF1816-0.8(6.6-4.5)-6
    Model
    RF1816-0.8(6.6-4.5)-6
  • 6-RF811515-0.5(0.5-8.2)
    6-RF811515-0.5(0.5-8.2)
    Exemplar
    6-RF811515-0.5(0.5-8.2)
  • 6-RF821515-0.5(5.5-2.5)
    6-RF821515-0.5(5.5-2.5)
    Exemplar
    6-RF821515-0.5(5.5-2.5)
  • JD501516-0.4-01
    JD501516-0.4-01
    Model
    JD501516-0.4-01
  • JD811520-0.5-0.1
    JD811520-0.5-0.1
    Model
    JD811520-0.5-0.1
  • 7-RF941515-0.5(5.5-2.5)
    7-RF941515-0.5(5.5-2.5)
    Model
    7-RF941515-0.5(5.5-2.5)
  • JD1201515-0.5-01
    JD1201515-0.5-01
    Model
    JD1201515-0.5-01
  • JD1201515-0.5-02
    JD1201515-0.5-02
    Exemplar
    JD1201515-0.5-02
  • RF1816-0.8(6.6-4.5)-9
    RF1816-0.8(6.6-4.5)-9
    Model
    RF1816-0.8(6.6-4.5)-9
  • JYZ22-0.45-01
    JYZ22-0.45-01
    Model
    JYZ22-0.45-01

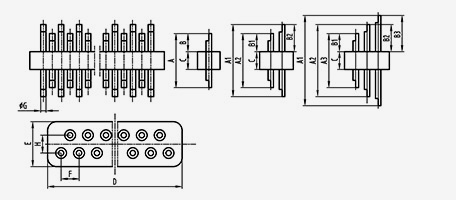

  • Impedimentum Non-50Ω Characteristic - Multi-Core
    Impedimentum Non-50Ω Characteristic - Multi-Core
    Exemplar Magnitudo (mm)
    A B C D E F G H a viverra-per row Terminatio
    JD156018-0.3(27.2-0.8)-8 27.2 0.8 1.4 6 1.8 0.6 0.3 0 8 1 Interiorem conductor superioris faciem compagem
    JD151152-0.3(4.5-1.5)-9 4.5 1.5 1.5 11.5 2 1.27 0.3 0 9 1 solidamentum
    2-JD162020-0.3(5-1.7)-4 A1=5
    A2=3.6     		B1 = 1.7
    B2=1     		1.6 2 2 0.57 0.3 0.57 4 2 Plana compages utrinque conductores interioris
    2-JD162020-0.3(7.6-1.7)-4 A1=7.6
    A2=3.6     		B1 = 1.7
    B2=1     		1.6 2 2 0.57 0.3 0.56 4 2 Plana compages utrinque conductor interiores fines
    JD158215-0.38(7-0.8)-6 7 0.8 1.5 8.2 1.5 1.27 0.38 0 6 1 Superior clavus capitis facies compages
    JD153015-0.38(8-1.9)-2 8 1.9 1.5 3 1.5 1.27 0.38 0 2 1 iuncta
    2-JD162525-0.38(10.6-3.5)-4 10.6 3.5 1.6 2.5 2.5 0.71 0.38 0.71 4 2 solidamentum
    2-JD187425-0.38(3.8-1)-16 A1=3.8
    A2=5.2     		B1=1
    B2=1.7     		1.8 7.4 2.5
    4     		0.88 0.38 1.02 16 2 Interius conductor terminos complanata et religata transversa
    JD1510516-0.45(7.5-2)-8 7.5 2 1.5 10.5 1.6 1.27 0.45 0 8 1 solidamentum
    JD155515-0.5(5.7-1.7}-4 5.7 1.7 1.5 5.5 1.5 1.27 0.5 0 4 1 Interius conductor superius complanatis compage
    JD1512015-0.5(5.8-2.5)-9 5.8 2.5 1.5 12 1.5 1.27 0.5 0 9 1 Inferiorem interiorem conductor complanatis parte compages
    JD153015-0.5(7-0.5)-2 7 0.5 1.5 3 1.5 1.27 0.5 0 2 1 Vinculum interioris conductor finit
  • Impedimentum Non-50Ω Characteristic - Multi-Core
    Impedimentum Non-50Ω Characteristic - Multi-Core
    Model Magnitudo (mm)
    A B C D E F G H a viverra-per row Terminatio
    JD153815-0.5(7.7-1.2)-2 7.7 1.2 1.5 3.8 1.5 2.1 0.5 0 2 1 Interius conductor superius complanatis compage
    JD153015-0.5 (13.5-4)-2 13.5 4 1.5 3 1.5 1.27 0.5 0 2 1 Welding
    JD1613215-0.5(10.6-2)-10 10.6 2 1.6 13.2 1.5 1.27 0.5 0 10 1 solidamentum
    JD302915-0.5(8-1)-2 8 1 3 2.9 1.5 1.27 0.5 0 2 1 Interiorem conductor superioris faciem compagem
    2-JD165528-0.5(7.6-1)-8 7.6 1 1.6 5.5 2.8 1.07 0.5 0 8 2 Interiorem conductor superioris faciem compagem
    2-JD154330-0.5(5.8-2)-5 Al=5.8
    A2=5.1     		B1=2
    B2=1.3     		1.5 4.3 3 1.27 0.5 1.5 5 2 Venditor superiorem partem adulatione
    2-JD156830-0.5(5.8-2)-9 Al=5.8
    A2=5.1     		B1=2
    B2=1.3     		1.5 6.8 n 1.27 0.5 1.5 6 2 CONDORSUS adulatione interioris conductoris superioris partis
    2-JD1512030-0.5(9.3-2.8)-18 A1=9.3
    A2=8     		B1=2.8
    B2=1.5     		1.5 12 3 1.27 0.5 1.5 18 2 Welding adulatione interioris conductor terminos
    3-JD155545-0.5(9.5-4)-12 Al=9.5
    A2=7.5
    A3=5.5     		B1=4
    B2=3
    B3=2     		1.5 5.5 4.5 1.27 0.5 1.5 12 3 solidamentum
    2-JD207015-0.6(7-3)-10 A1=7
    A2=6     		B1=3
    B2=2     		2 7 1.5 1.27 0.6 1.5 10 2 Interius conductor complanata et religata utrinque
    2-JD3012230-0.6(10.8-5)18 10.8 5 3 12.2 3 1.27 0.6 1.5 18 2 Inferius interiorem conductor parte complanata compages
  • JYZ22-0.45-02
    JYZ22-0.45-02
    Exemplar
    JYZ22-0.45-02

CONTACTUM SERVATE

Submit

PRODUCTA AFFINIA

De Us
Ningbo Hanson Communicatio Technology Co., Ltd.
Ningbo Hanson Communication Technology Co., Ltd.
Ningbo Hanson Communication Technology Co., Ltd. est Sinae RF Glass Insulator Fornitor et Ad Hoc RF Glass Insulator Societas. Sumus fabricator specializatus in productione, processu, et commercio componentium communicationis, cum plus quam 30 annis experientiae in connectris coaxialibus RF, adaptoribus, et catervis funium. Societas nunc suum officinam machinalem, officinam electroincrustationis, officinam congregationis, et catervam stabilium et fidelium fornitorum evolvit. Propositum societatis est clientibus praebere producta summae qualitatis. Producta principalia sunt connectri coaxiales RF, adaptores, catervae funium altae frequentiae, et catervae funium humilis intermodulationis. Praeterea, societas etiam servitia praebere potest clientibus cum necessitatibus ad hoc factis ut speciales clientium requisitiones pro productis satisfaciat. Producta societatis late adhibentur in astronautica, stationibus basium communicationis, apparatibus medicis, et aliis campis altae technologiae. Tempore reformationis, innovationis, evolutionis, et incrementi societatis, societas sponte se coniunxit systemati administrationis qualitatis internationali ISO9001 et gradum administrationis continenter melioravit ut producta et servitia magis satisfacientia clientibus veteribus et novis praebeat.
Nuntii Novissimi
Quaeris Occasionem Negotii?

Pete vocationem hodie

CONTACTUM INI
