SMPM Hermetically signatum Connector

Descriptio:

SMPM (SubMiniature Push-on Micro) iungo obsignatus est iungo minutivus RF cum plena evasione, semi-effuatione, et foramine levis, ad altum frequentiam, spatium compactum, et applicationes leves. Est impulsus in iungo, vulgo in communicationibus et instrumentis electronicis adhibitis, quae gravitatem, altam firmitatem et parvitatem exigunt. SMPM connexiones habent altum signum transmissionis qualitatis et bonum electricae operationis praebere possunt.

Sciscitare

Basic structura:

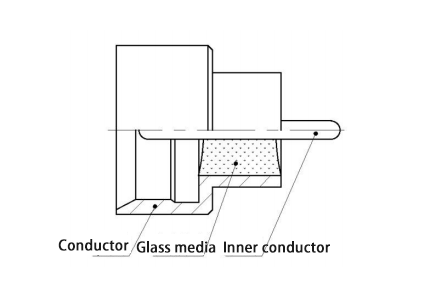

SMPM-J typus aeri-signatus RF connector coaxialis constat tribus partibus: conductor exterior, medium vitreum et conductor interior, structura fundamentalis infra figuram ostenditur;

Principalis Parametri Technical:

Characteres electrici
Impedimentum proprium 50Ω Frequentia Range DC~40GHz
Dielectric contra intentionem 500Vrms Nulla resistentia 2000M Ω
Voltage VSWR <1.4 Damnum insertio ≤0.05 f dB(GHz)
Materia et mechanica, proprietatibus environmental
Casing Lavable Alloy / Aurum Plated paxilli Lavabile mixturae / aurum patella
Insulatio medium vitrum Connector Diuturnitatem Plena evasio 100 times
Ultrices rate ≤1.01325×10 ⁹ Pa ·m³/s optical foraminis 1000 times
operating temperatus -65℃~ 165℃

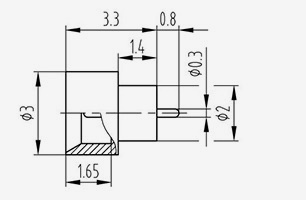

Magnitudo:

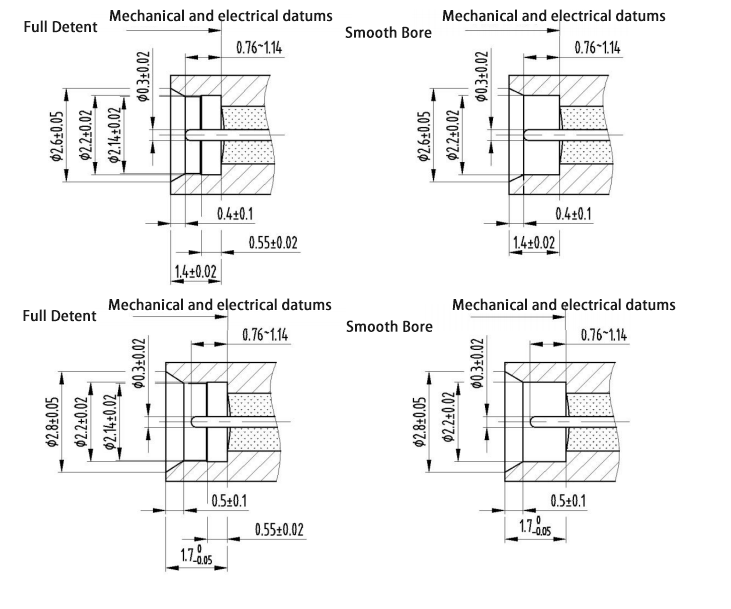

SMPM-J typus aeris RF signati nexus coaxiales habent duas formas interfacies: plenam evasionem et foramen nudum. Exemplar cum nominatione, F plenam evasionem indicat
S significat lumen foramen. Dimensiones interfaces dividuntur in dimensiones interfacies normales et dimensiones interfacies breves, quarum utraque cum SMPM-K specie obturaculorum inter se cohaerent.

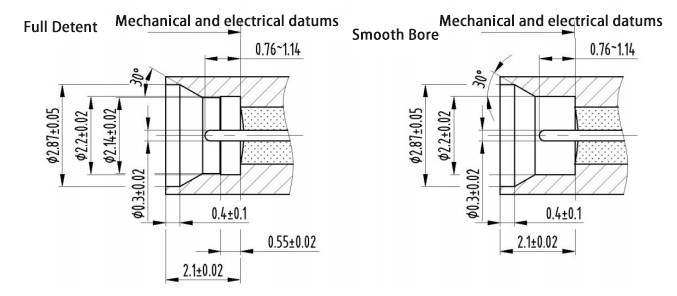

Magnitudo interface Latin:

Brevi spatio interface:

SMPM SERIES
  • SMPM(M) -JYD3S
    SMPM(M) -JYD3S
    Exemplar Dicta
    SMPM(M) -JYD3S Smooth Bore
  • SMPM(M)-JYD5S
    SMPM(M)-JYD5S
    Exemplar Dicta
    SMPM(M)-JYD5S Smooth Bore
  • SMPM(M) -JYD8F
    SMPM(M) -JYD8F
    Exemplar Dicta
    SMPM(M) -JYD8F Plena Detent
  • SMPM(M) -JYD10F
    SMPM(M) -JYD10F
    Exemplar Dicta
    SMPM(M) -JYD10F Plena Detent
  • SMPM(M) -JYD12S
    SMPM(M) -JYD12S
    Model Dicta
    SMPM(M) -JYD12S Smooth Bore
  • SMPM(M) -JYD13F
    SMPM(M) -JYD13F
    Model Dicta
    SMPM(M) -JYD13F Plena Detent
  • SMPM(M) -JYD14F
    SMPM(M) -JYD14F
    Exemplar Dicta
    SMPM(M) -JYD14F Plena Detent
  • SMPM(M) -JYD15F
    SMPM(M) -JYD15F
    Exemplar Dicta
    SMPM(M) -JYD15F Plena Detent
  • SMPM(M) -JYD16S
    SMPM(M) -JYD16S
    Exemplar Dicta
    SMPM(M) -JYD16S Smooth Bore
  • SMPM(M) -JYD17S
    SMPM(M) -JYD17S
    Model Dicta
    SMPM(M) -JYD17S Smooth Bore
  • SMPM(M) -JYD18S
    SMPM(M) -JYD18S
    Model Dicta
    SMPM(M) -JYD18S Smooth Bore
  • SMPM(M) -JYD19S
    SMPM(M) -JYD19S
    Model Dicta
    SMPM(M) -JYD19S Smooth Bore
  • SMPM(M) -JYD20F
    SMPM(M) -JYD20F
    Exemplar Dicta
    SMPM(M) -JYD20F Plena Detent
  • SMPM(M) -JYD21S
    SMPM(M) -JYD21S
    Model Dicta
    SMPM(M) -JYD21S Smooth Bore
  • SMPM(M)-JYD22F
    SMPM(M)-JYD22F
    Model Dicta
    SMPM(M)-JYD22F Plena Detent
  • SMPM(M) -JYD23S
    SMPM(M) -JYD23S
    Exemplar Dicta
    SMPM(M) -JYD23S Smooth Bore
  • SMPM(M)-JYD24F
    SMPM(M)-JYD24F
    Exemplar Dicta
    SMPM(M)-JYD24F Plena Detent
  • SMPM(M) -JYD25F
    SMPM(M) -JYD25F
    Model Dicta
    SMPM(M) -JYD25F Plena Detent
  • SMPM(M)-JYD26F
    SMPM(M)-JYD26F
    Exemplar Dicta
    SMPM(M)-JYD26F Plena Detent
  • SMPM(M) -JYD27S
    SMPM(M) -JYD27S
    Model Dicta
    SMPM(M) -JYD27S Smooth Bore
  • SMPM(M)-JYD28S
    SMPM(M)-JYD28S
    Exemplar Dicta
    SMPM(M)-JYD28S Smooth Bore
  • SMPM(M) -JYD29F
    SMPM(M) -JYD29F
    Model Dicta
    SMPM(M) -JYD29F Plena Detent
  • SMPM(M) -JYD30S
    SMPM(M) -JYD30S
    Model Dicta
    SMPM(M) -JYD30S Smooth Bore
  • SMPM(M) -JYD31F
    SMPM(M) -JYD31F
    Exemplar Dicta
    SMPM(M) -JYD31F Plena Detent
  • SMPM(M) -JYD32F
    SMPM(M) -JYD32F
    Model Dicta
    SMPM(M) -JYD32F Plena Detent
  • SMPM(M) -JYD33S
    SMPM(M) -JYD33S
    Model Dicta
    SMPM(M) -JYD33S Smooth Bore
  • SMPM(M) -JYD34S
    SMPM(M) -JYD34S
    Model Dicta
    SMPM(M) -JYD34S Smooth Bore
  • SMPM(M) -JYD35S
    SMPM(M) -JYD35S
    Model Dicta
    SMPM(M)-JYD35S Smooth Bore
  • SMPM(M)-JYD36S
    SMPM(M)-JYD36S
    Model Dicta
    SMPM(M)-JYD36S Smooth Bore
  • SMPM(M) -JYD37S
    SMPM(M) -JYD37S
    Exemplar Dicta
    SMPM(M) -JYD37S Smooth Bore
  • SMPM(M)-JYD38S
    SMPM(M)-JYD38S
    Model Dicta
    SMPM(M)-JYD38S Smooth Bore
  • SMPM(M)-JYD39S
    SMPM(M)-JYD39S
    Exemplar Dicta
    SMPM(M)-JYD39S Smooth Bore
  • SMPM(M)-JYD41S
    SMPM(M)-JYD41S
    Model Dicta
    SMPM(M)-JYD41S Smooth Bore
  • SMPM(M) -JYD42S
    SMPM(M) -JYD42S
    Model Dicta
    SMPM(M) -JYD42S Smooth Bore
  • SMPM(M) -JYD43F
    SMPM(M) -JYD43F
    Exemplar Dicta
    SMPM(M)-JYD43F Plena Detent
  • SMPM(M) -JYD44F
    SMPM(M) -JYD44F
    Model Dicta
    SMPM(M) -JYD44F Plena Detent
  • SMPM(M) -JYD45S
    SMPM(M) -JYD45S
    Model Dicta
    SMPM(M) -JYD45S Smooth Bore
  • SMPM(M) -JYD46S
    SMPM(M) -JYD46S
    Model Dicta
    SMPM(M) -JYD46S Smooth Bore
  • SMPM(M) -JYD60F
    SMPM(M) -JYD60F
    Exemplar Dicta
    SMPM(M) -JYD60F Plena Detent
  • SMPM(M) -JYD61F
    SMPM(M) -JYD61F
    Exemplar Dicta
    SMPM(M) -JYD61F Plena Detent
  • SMPM(M) -JYD62F
    SMPM(M) -JYD62F
    Exemplar Dicta
    SMPM(M) -JYD62F Plena Detent
  • SMPM(M) -JYD63S
    SMPM(M) -JYD63S
    Model Dicta
    SMPM(M) -JYD63S Smooth Bore
  • SMPM(M) -JYD64S
    SMPM(M) -JYD64S
    Model Dicta
    SMPM(M) -JYD64S Smooth Bore
  • SMPM(M) -JYD65S
    SMPM(M) -JYD65S
    Model Dicta
    SMPM(M) -JYD65S Smooth Bore
  • SMPM(M) -JYD66S
    SMPM(M) -JYD66S
    Model Dicta
    SMPM(M) -JYD66S Smooth Bore
  • SMPM(M) -JHD1S
    SMPM(M) -JHD1S
    Model Dicta
    SMPM(M) -JHD1S Smooth Bore
  • SMPM(M) -JHD2F
    SMPM(M) -JHD2F
    Model Dicta
    SMPM(M) -JHD2F Plena Detent
  • SMPM(M) -JHD3F
    SMPM(M) -JHD3F
    Exemplar Dicta
    SMPM(M) -JHD3F Plena Detent
  • SMPM(M) -JHD4F
    SMPM(M) -JHD4F
    Exemplar Dicta
    SMPM(M) -JHD4F Plena Detent
  • SMPM(M) -JHD6F
    SMPM(M) -JHD6F
    Exemplar Dicta
    SMPM(M) -JHD6F Plena Detent
  • SMPM(M) -JHD21F
    SMPM(M) -JHD21F
    Model Dicta
    SMPM(M) -JHD21F Plena Detent
  • SMPM(M)-JFD1S
    SMPM(M)-JFD1S
    Model Dicta
    SMPM(M)-JFD1S Smooth Bore
  • SMPM(M) -JWSD1S
    SMPM(M) -JWSD1S
    Exemplar Dicta
    SMPM(M) -JWSD1S Smooth Bore
  • SMPM(M) -JWSD8
    SMPM(M) -JWSD8
    Exemplar Dicta
    SMPM(M)-JWSD8
  • SMPM(M) -JWSD9S
    SMPM(M) -JWSD9S
    Model Dicta
    SMPM(M) -JWSD9S Smooth Bore
  • SMPM(M) -JWSD10S
    SMPM(M) -JWSD10S
    Model Dicta
    SMPM(M) -JWSD10S Smooth Bore
  • SMPM(M) -JSD1S
    SMPM(M) -JSD1S
    Exemplar Dicta
    SMPM(M) -JSD1S Smooth Bore
