OEM 2.4mm RF Coaxial Connector Supplier

Ningbo Hanson Communicatio Technology Co., Ltd. Home / Products / RF Coaxial Connector / 2.4mm RF Coaxial Connector

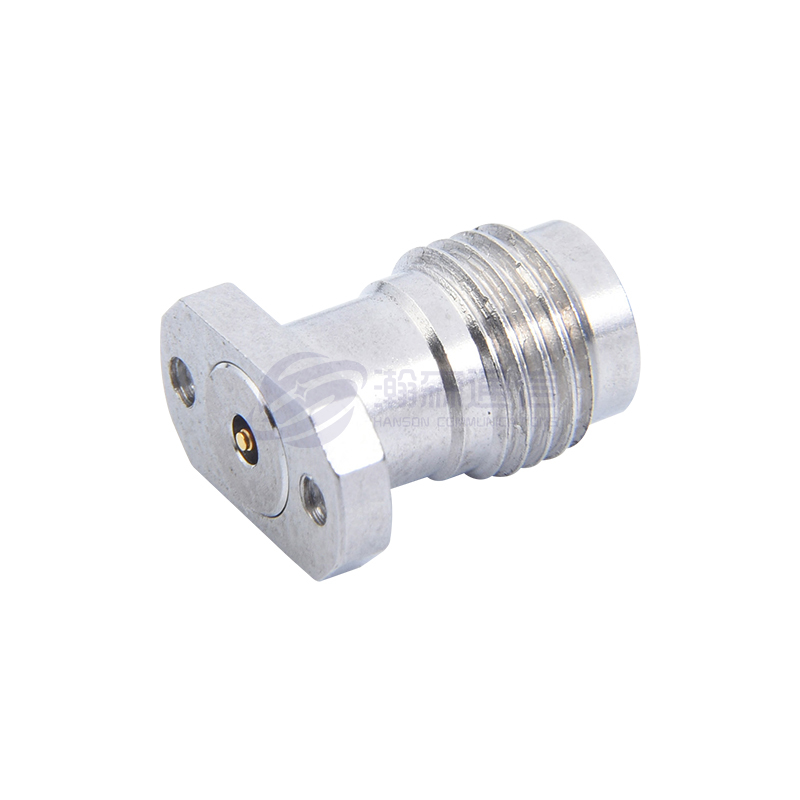

2.4mm RF Coaxial Connector

Descriptio:

2.4mm series connector est summus frequentia RF iungo designatus ad altum praecisionem, applicationes altae frequentiae, praesertim occasiones transmissionis insignes quae requirunt transmissionem frequentiae amplitudinis 40 GHz vel etiam altioris. Optima est electio ad summos faciendos necessarios in proin frequentia cohortis, altae communicationis velocitatis, et subtilitatis experimentum et agri mensurae.

Parameter:

Technical Specifications principalis:
Impedimentum Proprium: 50Ω
◆ Frequentia Range: DC-50GHz
◆ Insulation Resistentia: ≥5000MΩ
◆ Dielectric Consistere intentione: 500V(rms)
◆ intentione fluctua ratio (VSWR): ≤1.35
Coitus Cycles: 500 times

inquire

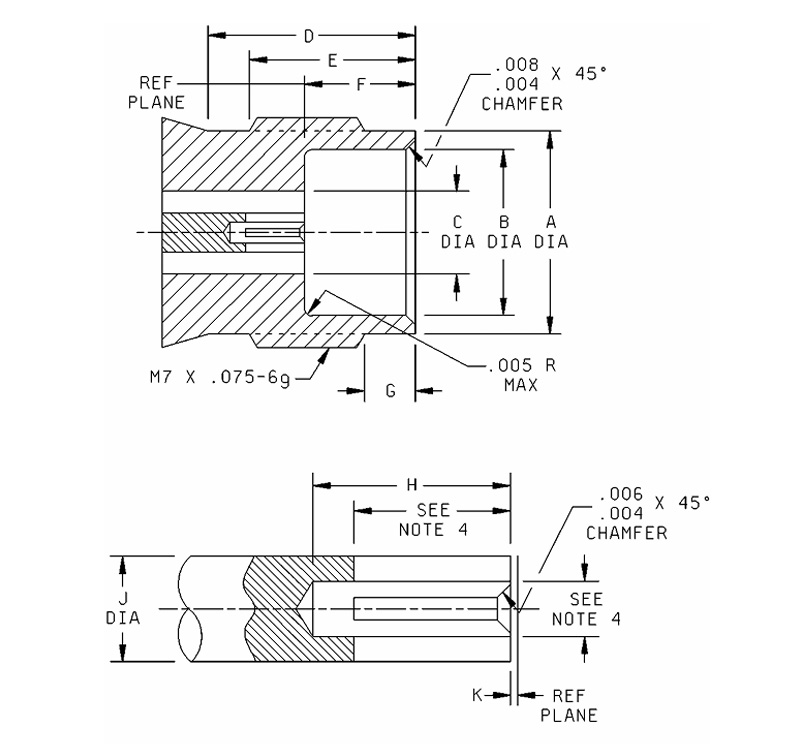

Epistula Millimeters (Unciarum)
Minimum Maximum
A 4.725 (186) 4.75(.187)
B 2.393(.094) 2.408(095)
C 1.85 (.073) 2.45 (.096)
E 4.75（.187) 4.85(.191)
F 1.035（.0407) 1.05 (.0413)
G 1.34 (.053) 1.45 (.057)
H 0.498(.0196) 0.523 (.0206)
J ---------- 0.25(.010)
K 0.00 (.000) 0.08 (.003)

Notae:
1. Sequela longitudo est a fine nucis iuncturae, 4.37 mm (.172inch) minimae, 0.63 mm (.025 pollicis) ± 0.25 mm (.010 pollicis).
2. Coitu nucis in anteriora luceat partem.
3. Dimensiones in mm.
4. Inch-mina aequivalentia tantum pro notitia dantur.
5. Peripatetici pepererunt 7 mm (.276 inches) minimum.

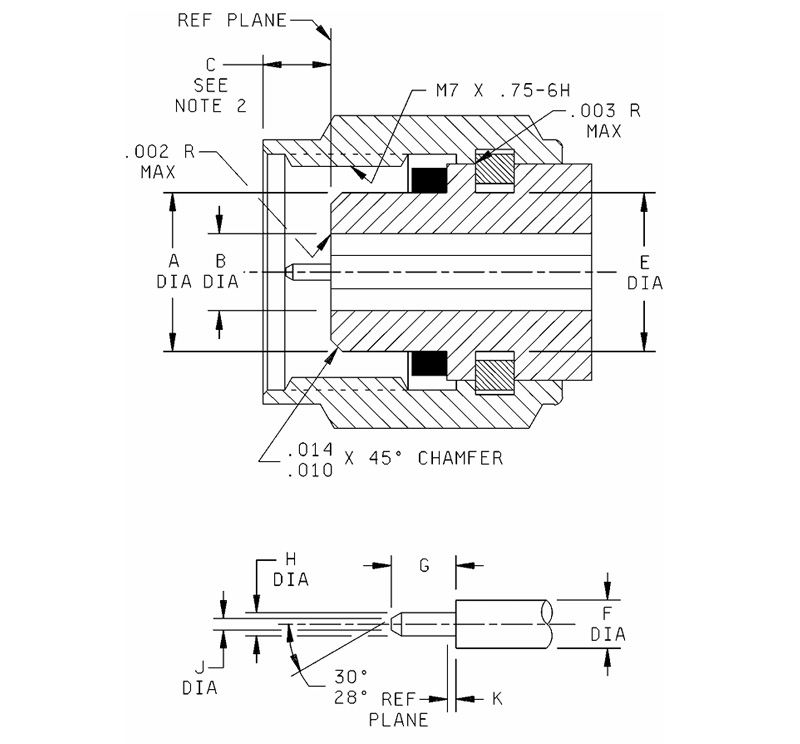

Epistula Millimeters (Unciarum)
Minimum Maximum
A 4.725(.186) 4.75 (187)
B 2.393 (.094) 2.408 (.095)
C 1.85 (.073) 2.45 (.096)
E 4.75（.187) 4.85 (191)
F 1.035（.0407) 1.05 (.0413)
G 1.34 (.053) 1.45 (.057)
H 0.498 (.0196) 0.523(.0206)
J -------- 0.25 (.010)
K 0.00(.000) 0.08 (.003)

Notae:
1. Sequela longitudo est a fine nucis iuncturae, 4.37 mm (.172inch) minimae, 0.63 mm (.025 pollicis) ± 0.25 mm (.010 pollicis).
2. Coitu nucis in anteriora luceat partem.
3. Dimensiones in mm.
4. Inch-mina aequivalentia tantum pro notitia dantur.
5. Peripatetici pepererunt 7 mm (.276 inches) minimum.

2.4mm SERIES

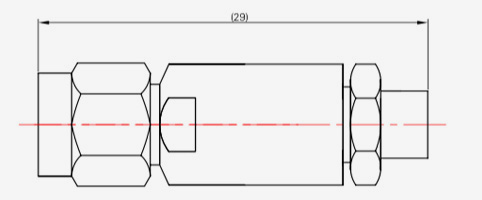

  • 2.4-JB2
    2.4-JB2
    Exemplar Genus cable
    2.4-JB2 SFT-50-2,670-086
  • 2.4-J125
    2.4-J125
    Model Genus cable
    2.4-J125 125
  • 2.4-J230
    2.4-J230
    Model Genus cable
    2.4-J230 MILFLEX230
