BNC Connector

Descriptio:

BNC series RF connector coaxialis est iungo bayonet-type RF coaxial evoluta secundum vexillum militare US MIL-C-39012. Celeris nexus et certae contactus notae habet, et unus e connexionibus in mundo latissime usitatis et usitatis est. Proprietas impedimenti seriei BNC RF connectoris coaxialis in 50Ω et 75Ω dividitur, et magnitudo duorum connexorum diversorum impedientium adaequatur..

Parametrum:

Technical Specifications principalis:
Proprium Impedimentum: 50Ω/75Ω
Frequency Range: DC-4GHz(50Ω)/DC-1GHz(75Ω)
◆ Insulation Resistentia: ≥5000MΩ
Dielectric resistunt intentioni: 1500V(rms)
◆ intentione fluctua ratio (VSWR): ≤1.25
Coitus Cycles: 500 times

Sciscitare

Dim

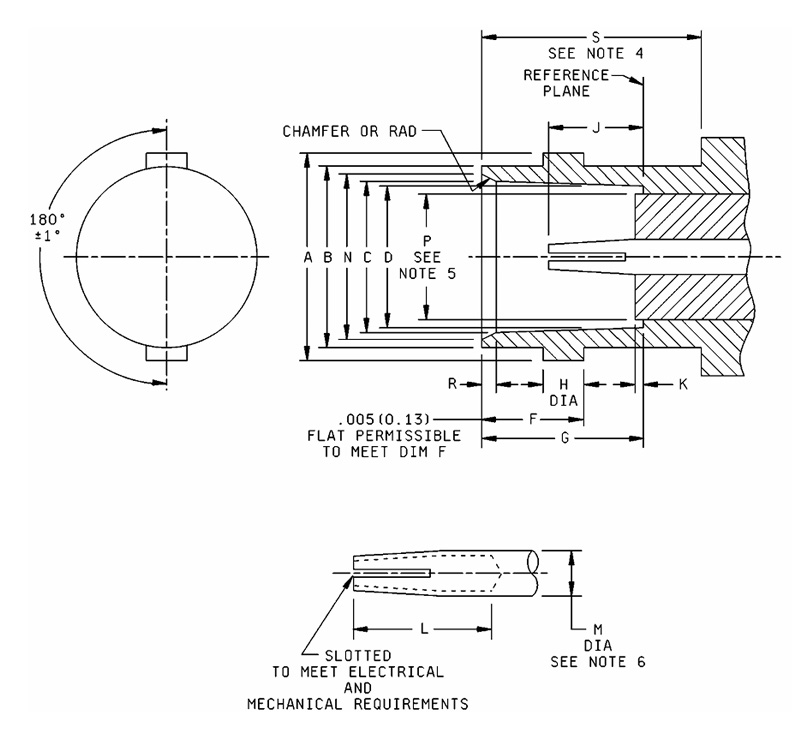

Ltr 		Millimeters (Unciarum)
Minimum Maximum
A .432 (10.97) .436 (11.07)
B .378 (9.60) .382 (9.70)
C .327 (8.31) .333 (8.46)
D .319 (8.10) .321 (8.15)
F .204 (5.18) .208 (5.28)
G .327(8.31) .335 (8.51)
H .075 (1.91) 081(2.06)
. .186(4.72) .206 (5.23)
K ------- .006(0.15)
L .195 (4.95) -------
M .081 (2.06) 087 (2.21)
N .346(8.79) .356 (9.04)
P ------- .256 (6.50)
R .015 (0.38) .030 (0.76)
S .414 (10.52) -------

Notae:
1. Dimensiones in unc. Equivalentia metrica in parenthesi sunt.
2. Equivalentia metrica pro sola informatione generali dantur.
3. Hoc interface occurret coniecturam requisitis ut in DSCC extractione vel specificatione specificatis.
4. Alvi ad coitum iungo coitus nucis.
5. "P" dimensio applicatur ad illam portionem (si applicabiles) dielectricae quae ultra plana references K dimensio extenditur.
6. "M" tantum supra longitudinem "L".

Dim
Ltr 		Millimeters (Unciarum)
Minimum Maximum
A 385 (9.78) .390 (9.91)
B Gauge test
D .052 (1.32) .054 (1.37)
E .210 (5.33) .230 (5.84)
G .091(2.31) .097 (2.46)
H .463 (11.76) .473 (12.01)
H alternis .394 (10.01) .400 (10.16)
J .124 (3.15) -------
K .091(2.31) .097 (2.46)
L .003 (0.08) -------
M .018 (0.46) .022 (0.56)
N ------- .025 (0.64)
P .208 (5.28) -------
Q .078 (1.98) -------
T .045 (1.14) .049 (1.24)
U .180(4.57) .184 (4.67)

Notae:
1. Dimensiones in unc. Equivalentia metrica in parenthesi sunt.
2. Equivalentia metrica pro sola informatione generali dantur.
3. In conditione coniugali, vis longitudinalis fontis iuncturae mechanismi superabit pressionem quam gasket obsignandi quantitate necessaria ad linsure tangendi exterioris contactus in plano referente.
4. Hoc interface occurret METIOR requisitis ut mundabitur sanctuarium.

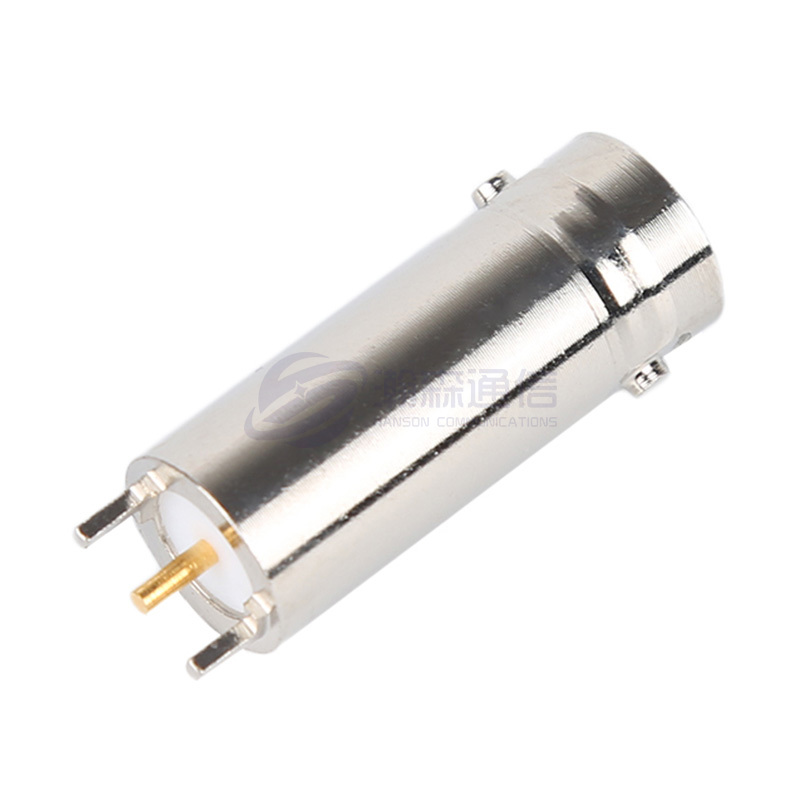

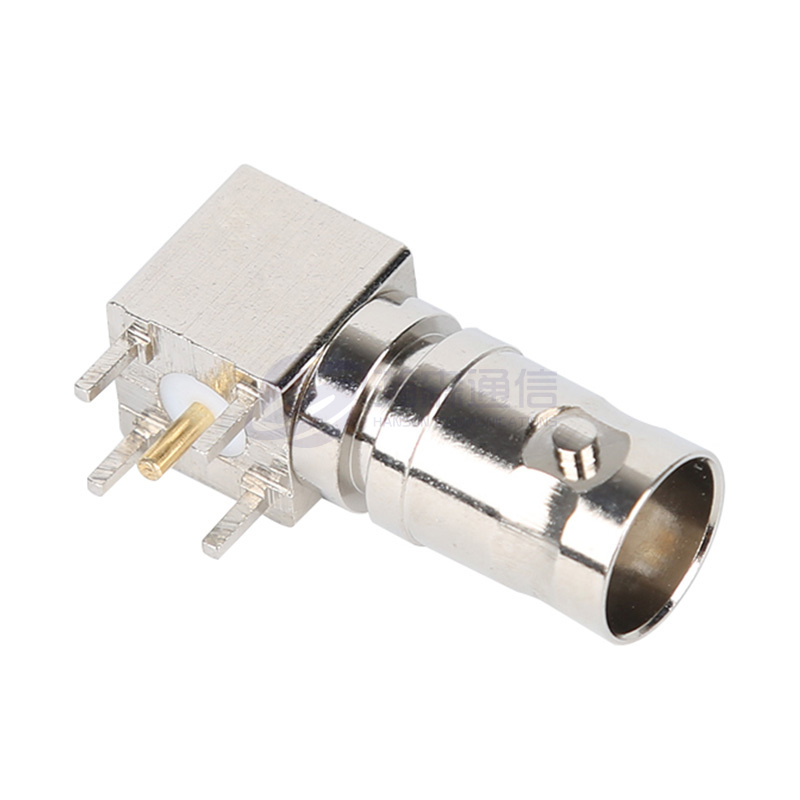

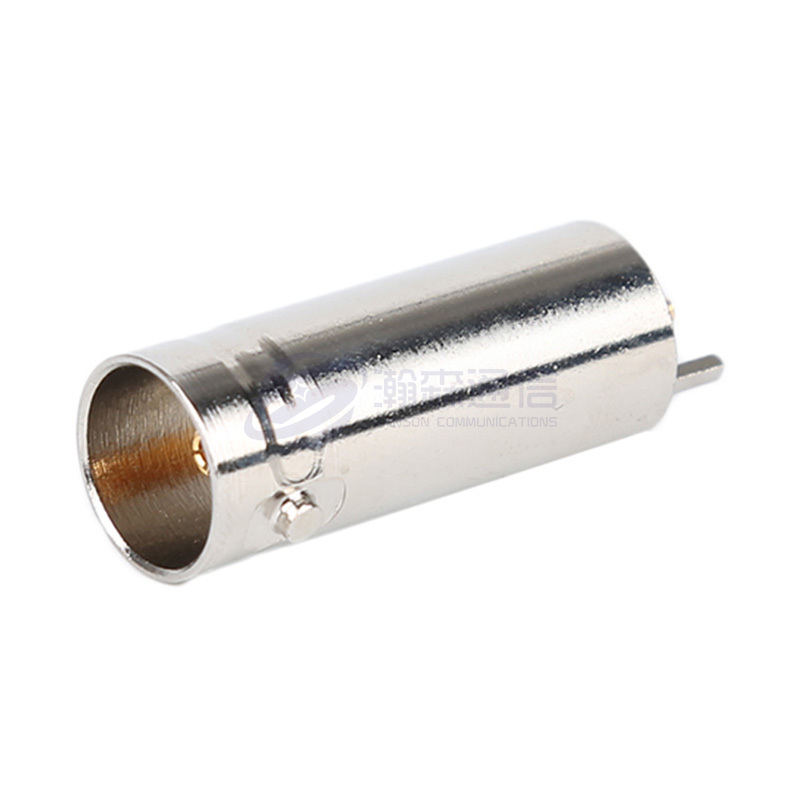

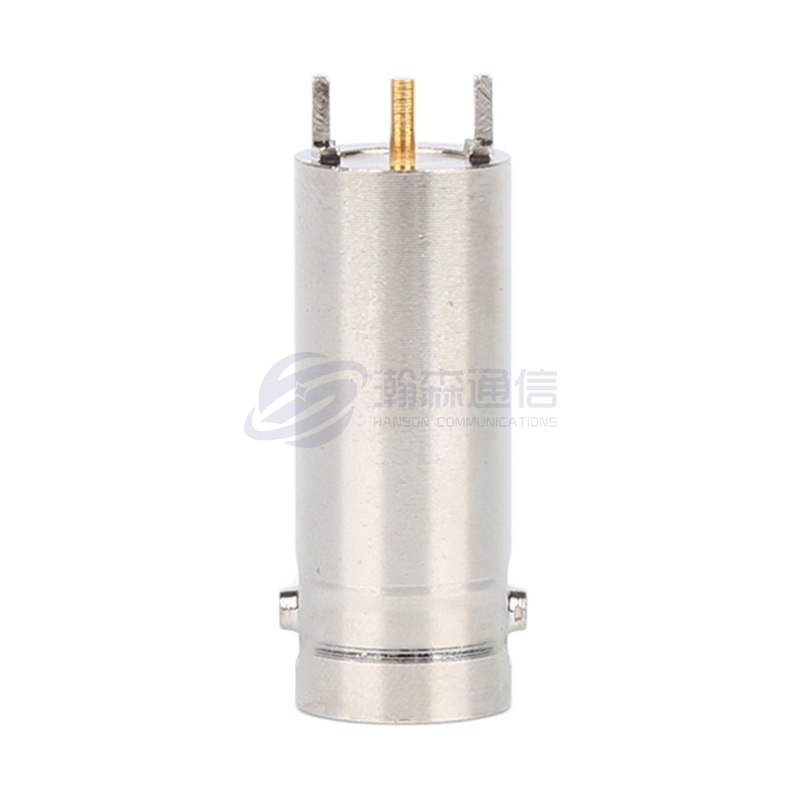

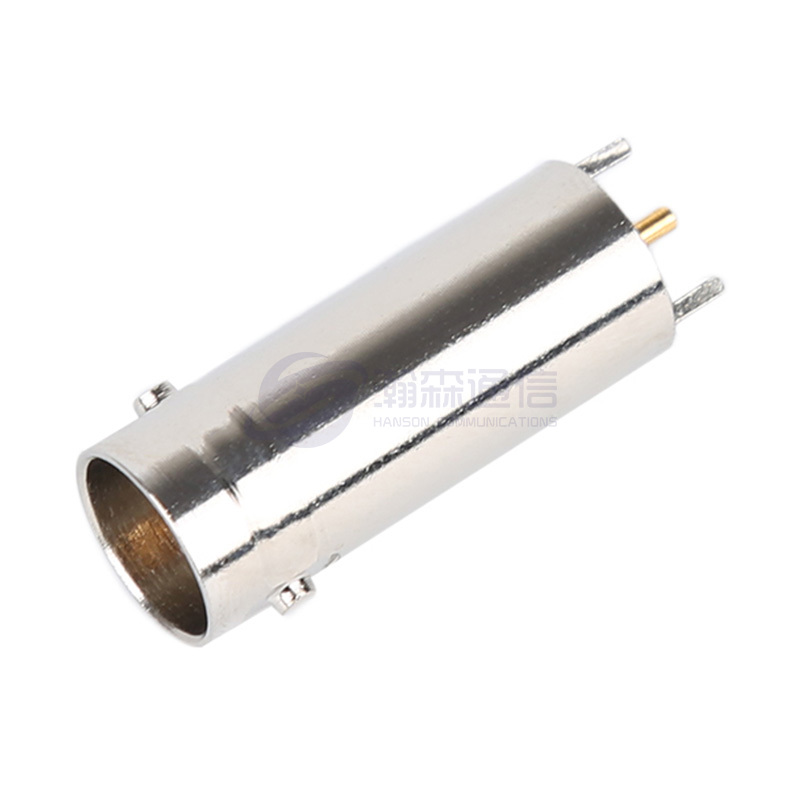

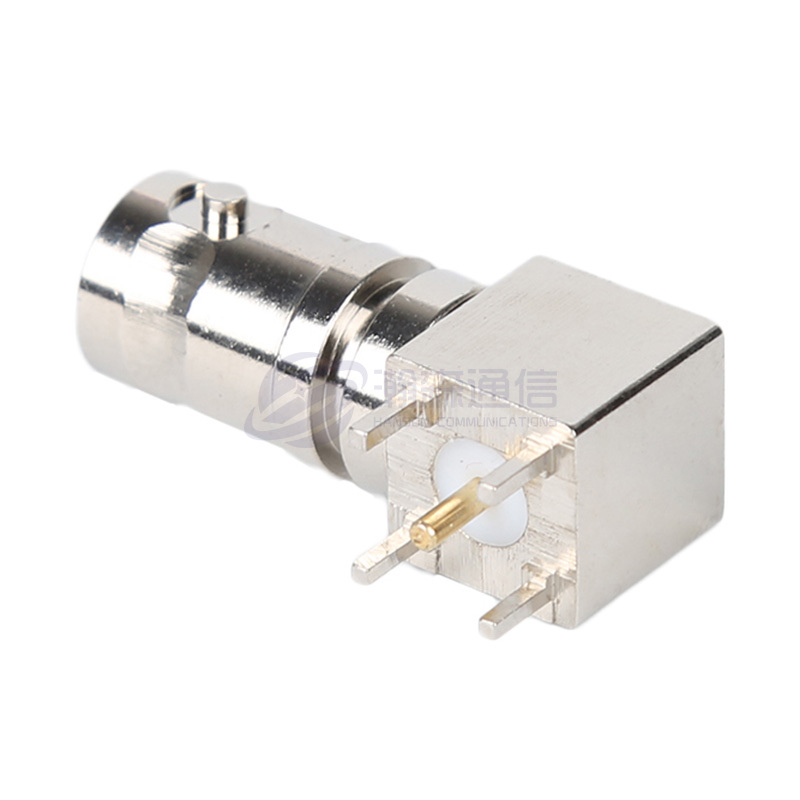

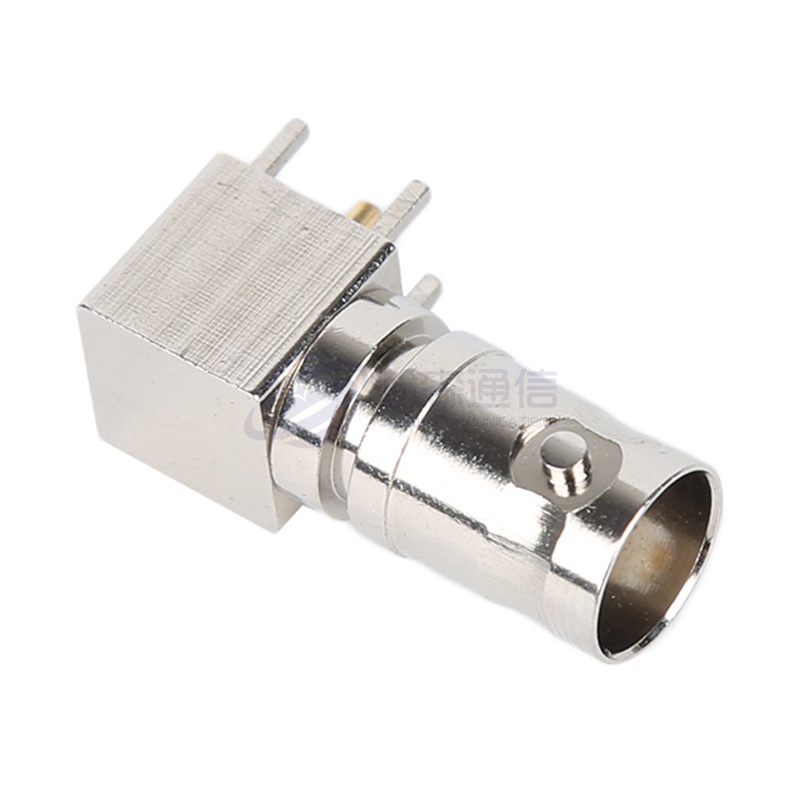

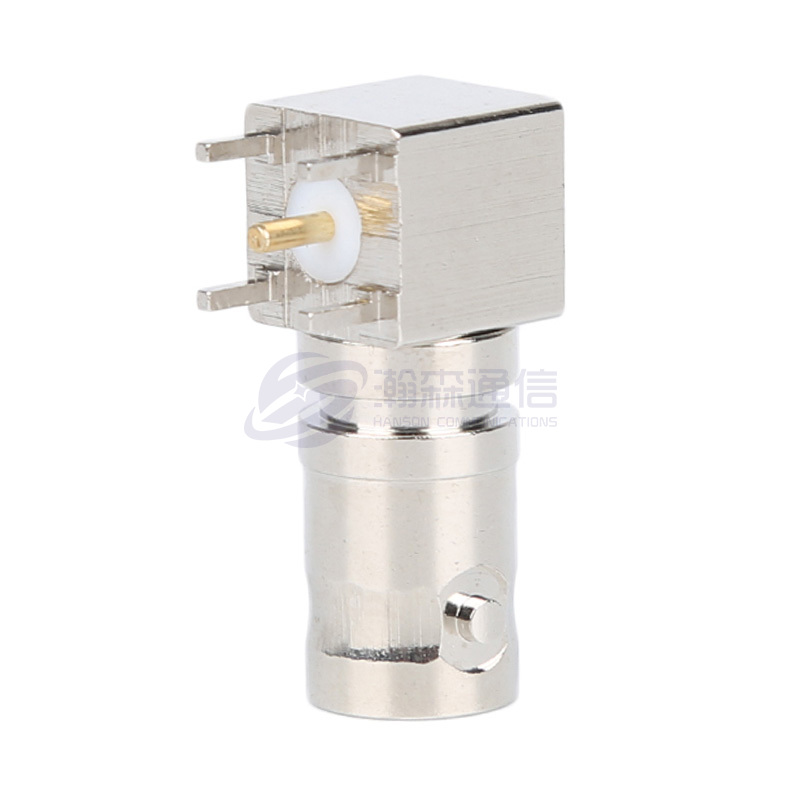

BNC SERIES

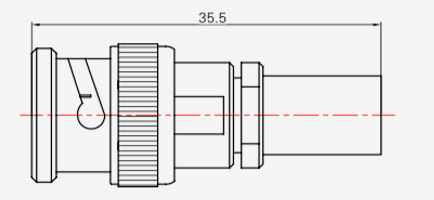

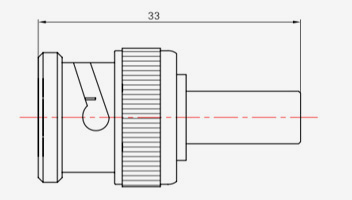

  • BNC-JB3
    BNC-JB3
    Model Genus cable
    BNC-JB3 SFT-50-3、670-141

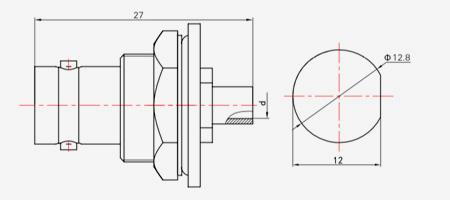

  • BNC-KB3
    BNC-KB3
    Model Genus cable
    BNC-KB3 SFT-50-3,670-141

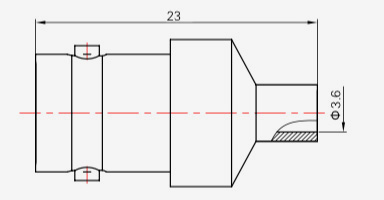

  • BNC-KYB2
    BNC-KYB2
    Mod*el Genus cable d
    BNC-KYB2 SFT-50-2,670-086 Φ2.2
    BNC-KYB3 SFT-50-2,670-141 Φ3.6

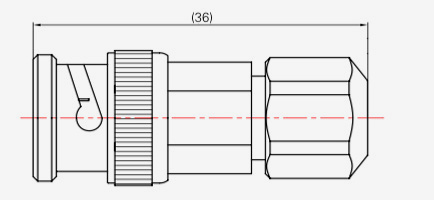

  • BNC-J3
    BNC-J3
    Model Genus cable
    BNC-J3 SYV-L-2-1, RG316
    BNC-J4 SYV-50-2-2
    BNC-J5,(K)5 SYV-L-III, SFCJ-50-3-51, RG142
    BNC-J7 SYV-L-5-1, SFCJ-50-5-51
    BNC-J10 SYV-L-7-1, SYV-L-7-2, SFCJ-50-7-51
  • BNC-J3Y
    BNC-J3Y
    Exemplar Genus cable
    BNC-J3Y SYV-L-2-1
    BNC-J5Y SYV-50-3

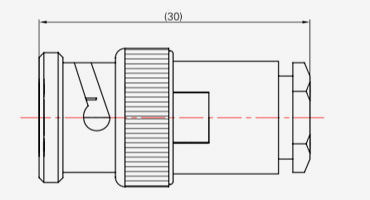

  • BNC-J12
    BNC-J12
    Exemplar Genus cable

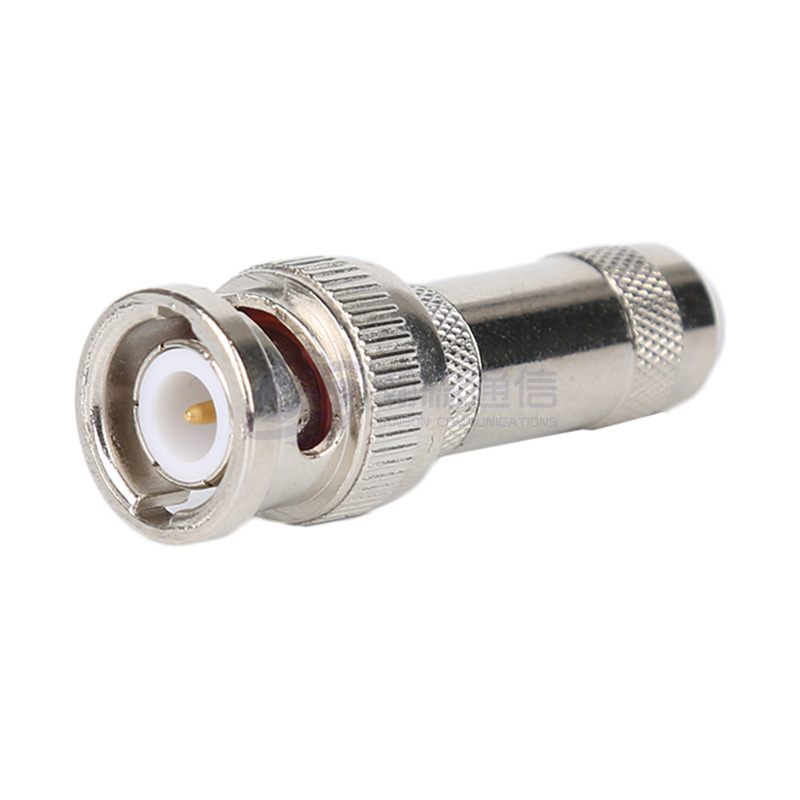

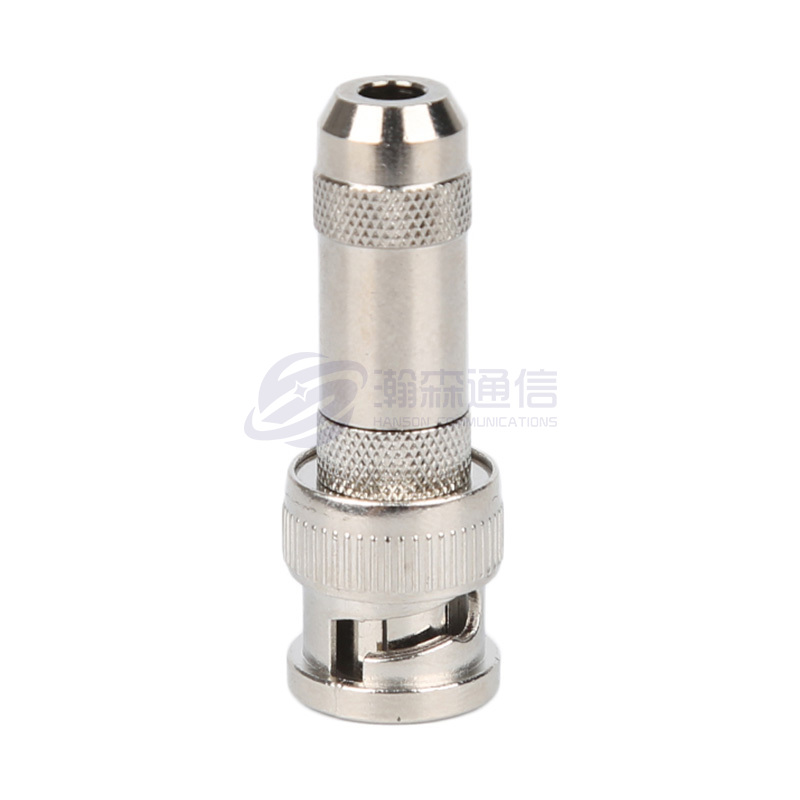

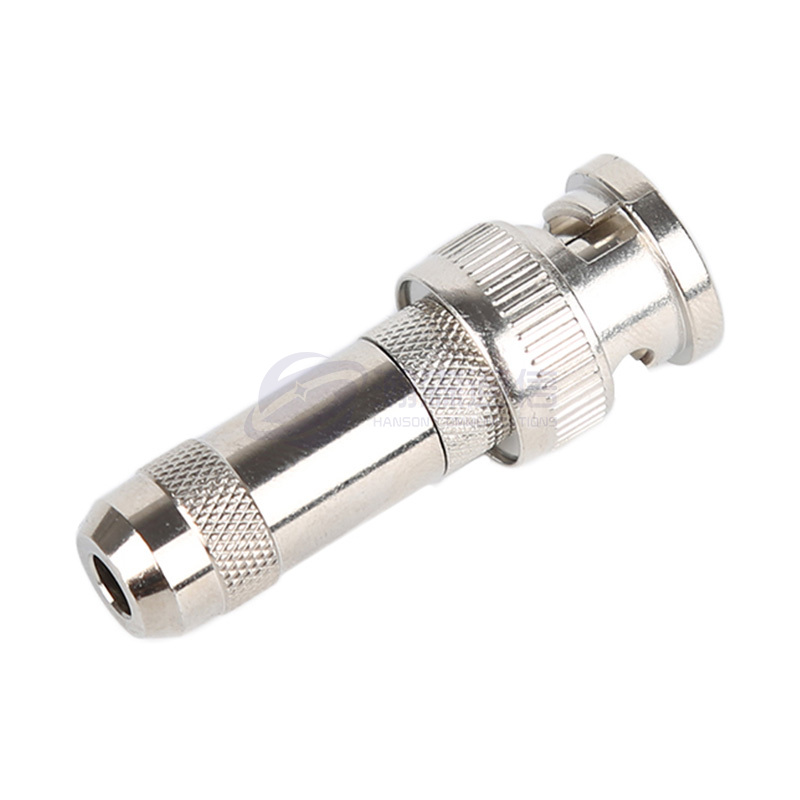

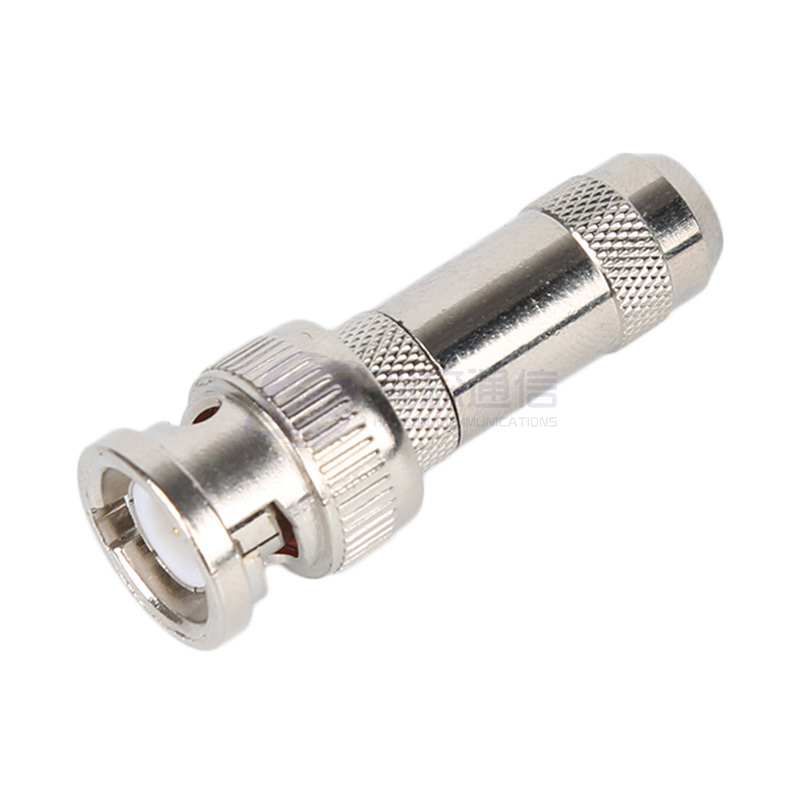

    BNC-J12 SYV-75-3

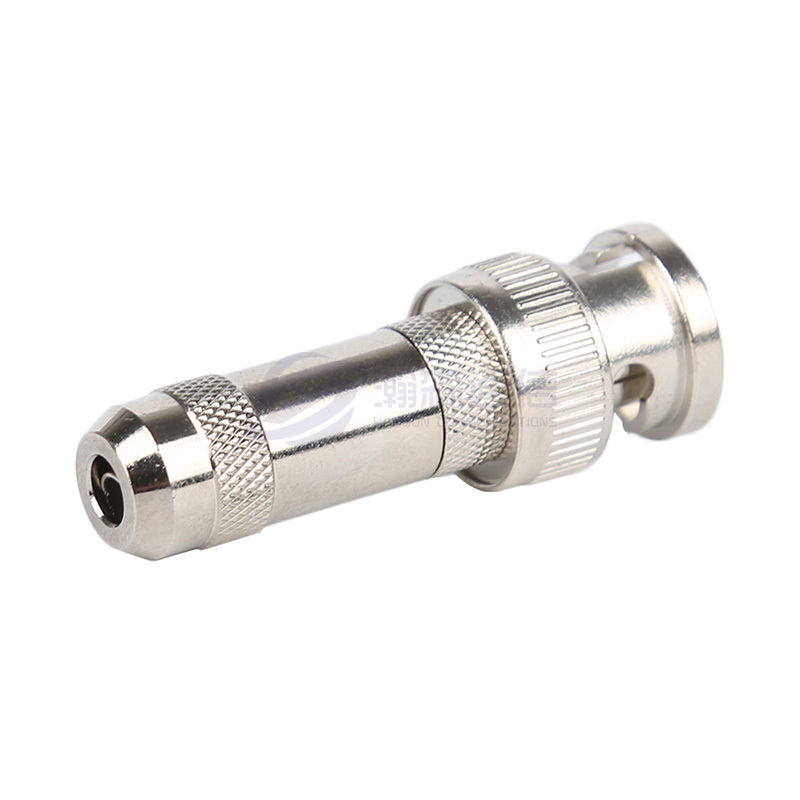

  • BNC-75J13Y
    BNC-75J13Y
    Exemplar Genus cable
    BNC-75J13Y SYV-75-5
  • BNC-JW3Y
    BNC-JW3Y
    Model Genus cable
    BNC-JW3Y SYV-50-2-1,RG316

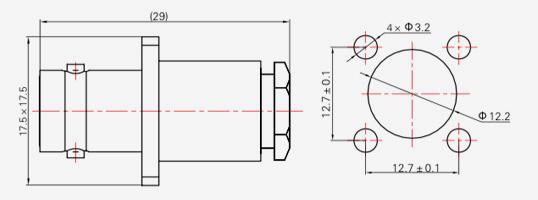

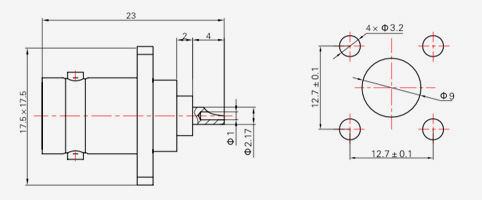

  • BNC-KF3
    BNC-KF3
    Model Genus cable
    BNC-KF3 SYV-L-2-1, RG316
    BNC-KF4 SYV-50-2-2
    BNC-KF5 SYV-L-III, SFCJ-50-3-51, RG142

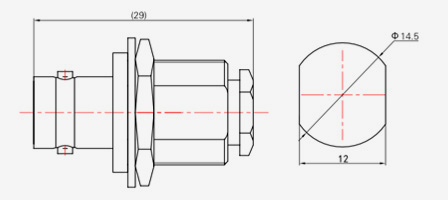

  • BNC-KY3
    BNC-KY3
    Exemplar Genus cable
    BNC-KY3 SYV-L-2-1, RG316
    BNC-KY4 SYV-50-2-2
    BNC-KY5 SYV-L-III, SFCJ-50-3-51, RG142
  • BNC-KF
    BNC-KF

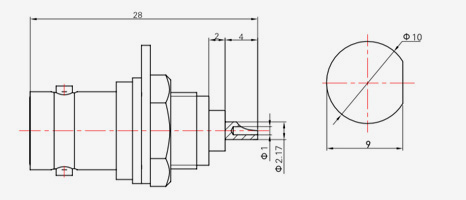

  • BNC-KY
    BNC-KY
