TNC Connector

Descriptio:

TNC series RF connexiones coaxiales augentur et producuntur secundum vexillum militare US MIL-C-39012. Late bandae notae habent, certam nexum, bonamque repugnantiam concussa. Apta sunt connectoribus et RF funes pro inputatione et output signa radiophonicis, instrumentis electronicis, componentibus variis laseralibus..

Parametrum:

Technical Specifications principalis:
Impedimentum Proprium: 50Ω
Frequency Range: DC-18GHz
◆ Insulation Resistentia: ≥5000MΩ
Dielectric resistunt intentioni: 1500V(rms)
◆ intentione fluctuanti ratio (VSWR): ≤1.30
Coitus Cycles: 500 times

Sciscitare

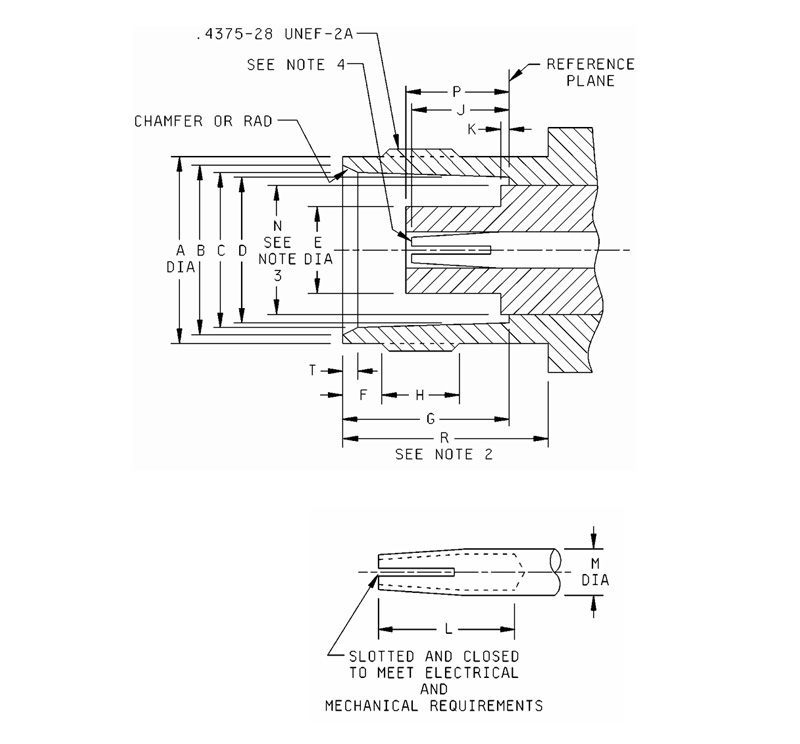

Dim
Ltr 		Millimeters (Unciarum)
Minimum Maximum
A .378 (9.60) .381 (9.68)
B .346 (8.79) .356 (9.04)
C .327 (8.31) .333 (8.46)
D .319 (8.10) .321 (8.15)
E ------- .186 (4.72)
F .068 (1.73) .088 (2.24)
G .327 (8.31) .335 (8.51)
H .187 (4.75) -------
J .186 (4.72) .206 (5.23)
K ------- .006 (0.15)
L .195 (4.95) -------
M .081 (2.06) .087 (2.21)
N ------- .256 (6.50)
P .188 (4.78) .208 (5.28)
R .414 (10.52) -------
T .015 (0.38) .030 (0.76)

Notae:
1. Hoc interface occurret METIOR requisitis de quibus in
MIL-PRF-39012/28.
2. Alvi ad coitum iungendi coitus cum nuce.
3. Dimensio pertinet ad partem illam (si dici) dielectricae
quae extare extra metallum
humero (vel referat planum) K. dimensione
4. ID occurrere VSwR cum iuncta cum .052 inch (1.32 mm)/.054 (1.37 mm) diametro paxillus.

Dim
Ltr 		Millimeters (Unciarum)
Minimum Maximum
A .440 (11.18) -------
B Gauge test
C .190 (4.83) -------
D .052 (1.32) .054 (1.37)
E .210 (5.33) .230 (5.84)
F .006 (0.15) -------
G .208 (5.28) .228 (5.79)
H .003 (0.08) .040 (1.02)
K .078 (1.98) -------
M ------- .078 (1.98)
N .063 (1.60) -------
P .156 (3.96) -------
R ------- .025 (0.64)
T ------- .322 (8.18)

Notae:
1. Hoc interface occurret METIOR requisitis de quibus in MIL-PRF-39012/26.

TNC SERIES

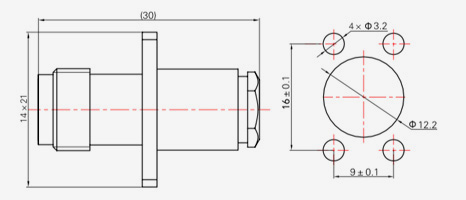

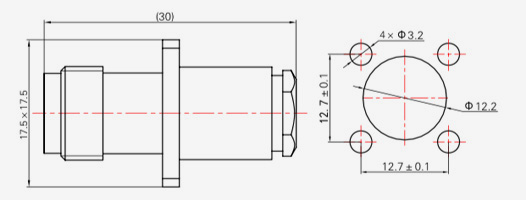

  • TNC-KF3A
    TNC-KF3A
    Model Genus cable
    TNC-KF3A SYV-L-2-1, RG316
    TNC-KF5A SYV-L-III, RG142, SFCJ-50-3-51
  • TNC-KF3A-1
    TNC-KF3A-1
    Exemplar Genus cable
    TNC-KF3A-1 SYV-50-2-1,RG316

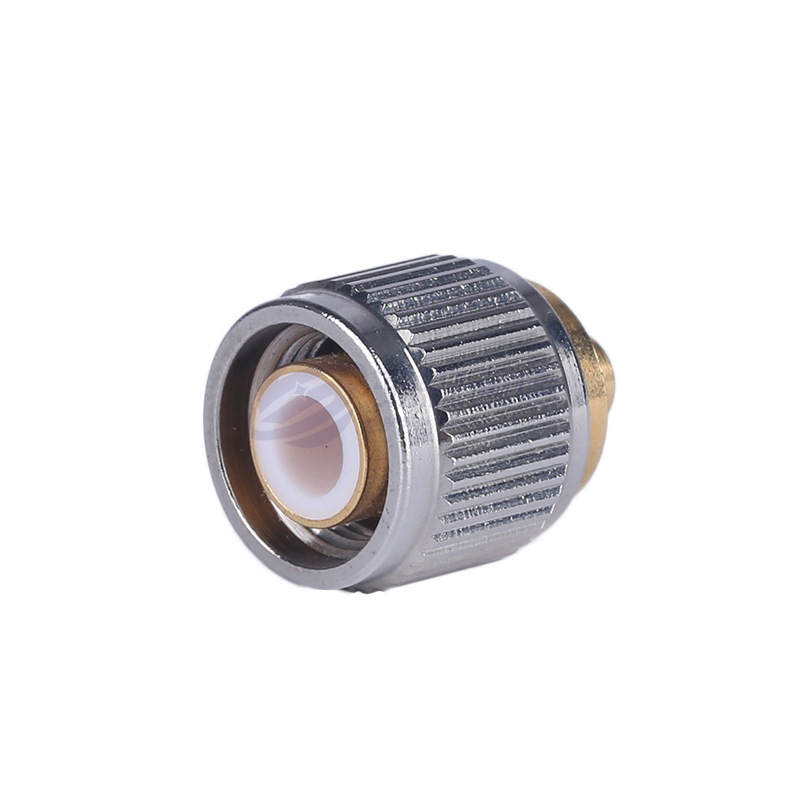

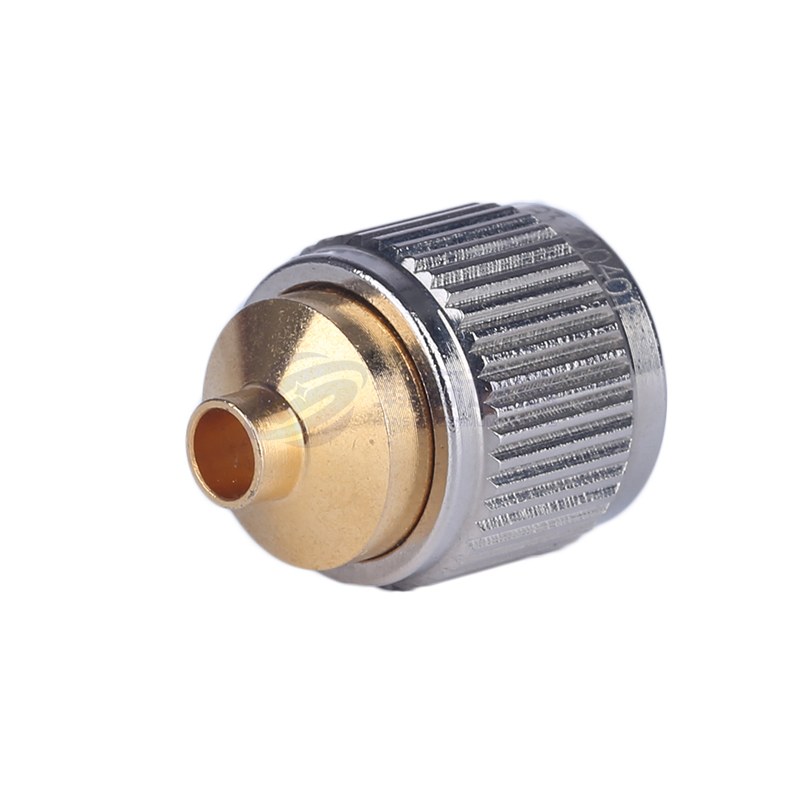

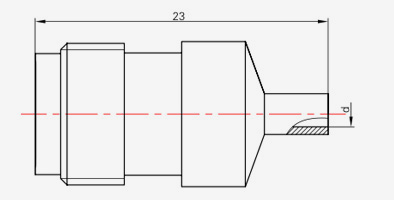

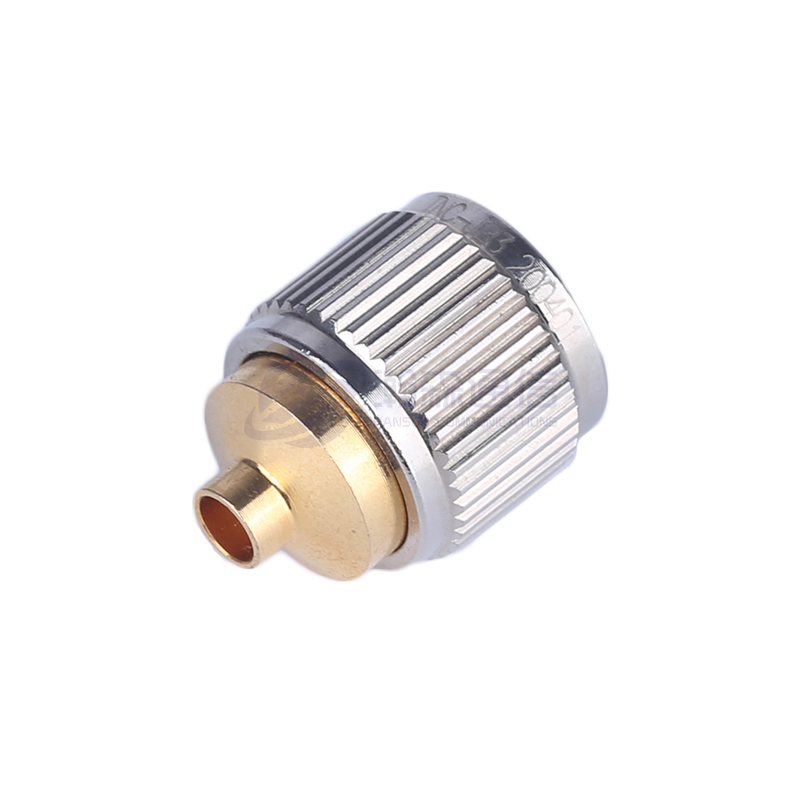

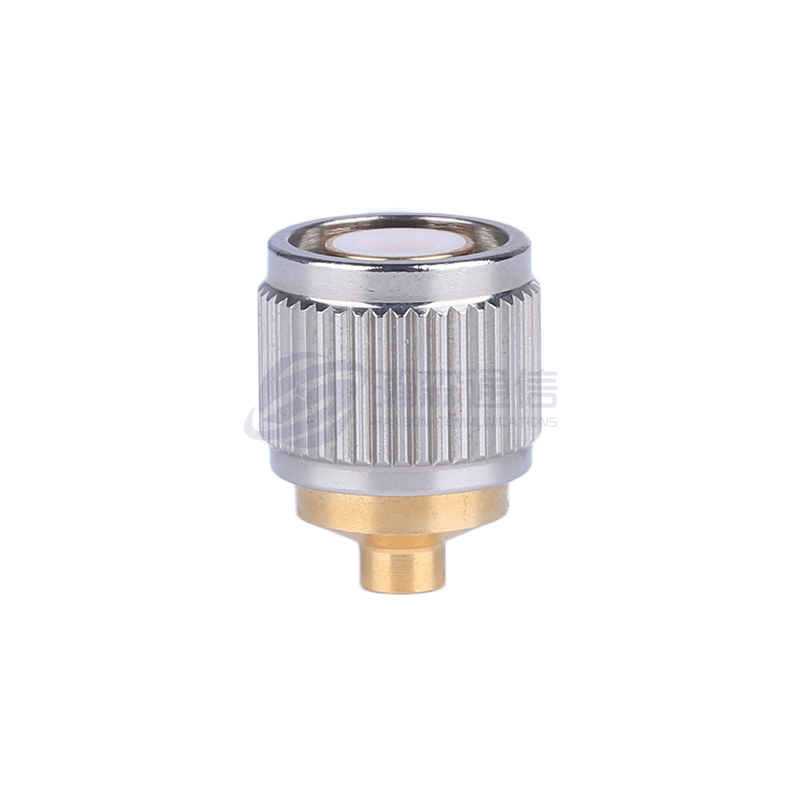

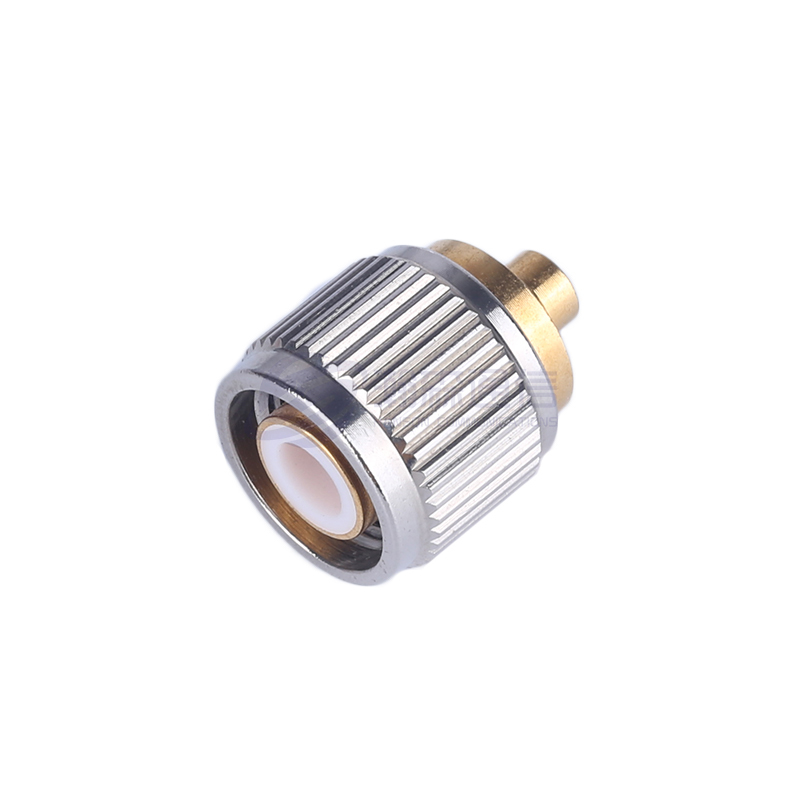

  • TNC-JB2
    TNC-JB2
    Mod*el Genus cable d
    TNC-JB2 SFT-50-2,670-086 Φ2.2
    TNC-JB3 SFT-50-3,670-141 Φ3.6
  • TNC-JWB2
    TNC-JWB2
    Exemplar Genus cable d*
    TNC-JWB2 SFT-50-2,670-086 Φ2.2
    TNC-JWB3 SFT-50-3,670-141 Φ3.6
  • TNC-KB2
    TNC-KB2
    Mod*el Genus cable d
    TNC-KB2 SFT-50-2,670-086 Φ2.2
    TNC-KB3 SFT-50-3,670-141 Φ3.6

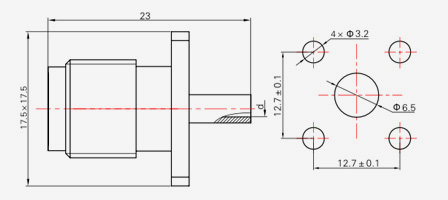

  • TNC-KFB2
    TNC-KFB2
    Exemplar Genus cable d*
    TNC-KFB2 SFT-50-2,670-086 Φ2.2
    TNC-KFB3 SFT-50-3,670-141 Φ3.6

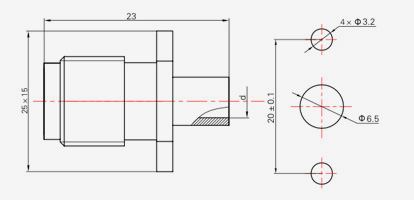

  • TNC-KFB2-1
    TNC-KFB2-1
    Mod*el Genus cable d
    TNC-KFB2-1 SFT-50-2,670-086 Φ2.2
    TNC-KFB3-1 SFT-50-3,670-141 Φ3.6

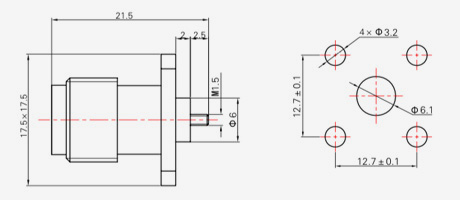

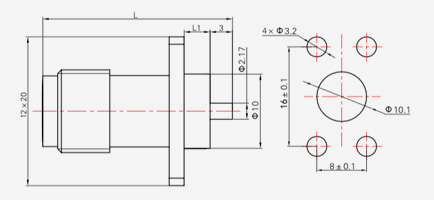

  • TNC-KFD2
    TNC-KFD2

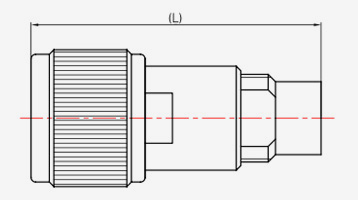

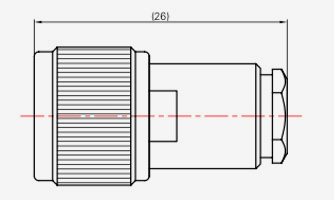

    Exemplar L L1
    KFD2 27 3.5
    KFD3 22 2
  • TNC-J3A
    TNC-J3A
    Model Genus cable
    TNC-J3A SYV-L-2-1, RG316
    TNC-J5A SYV-L-3-4, RG142, SFCJ-50-3-51
    TNC-J5AC

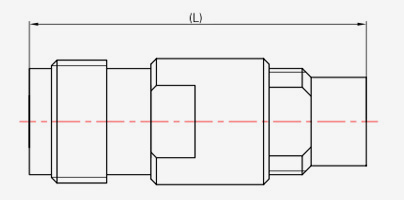

  • TNC-J4
    TNC-J4
    Exemplar Genus cable L
    TNC-J4 SYV-50-2-2 31
    TNC-J5 SYV-L-3-4, SFCJ-50-3-51, RG316 31
    TNC-(K)5
    TNC-J5C
    TNC-J7 SYV-L-5-1, SFCJ-50-5-51 36
    TNC-J7C
    TNC-J10 SYV-L-7-1, SYV-L-VII-II, SFCJ-50-7-51 36
    TNC-J10C

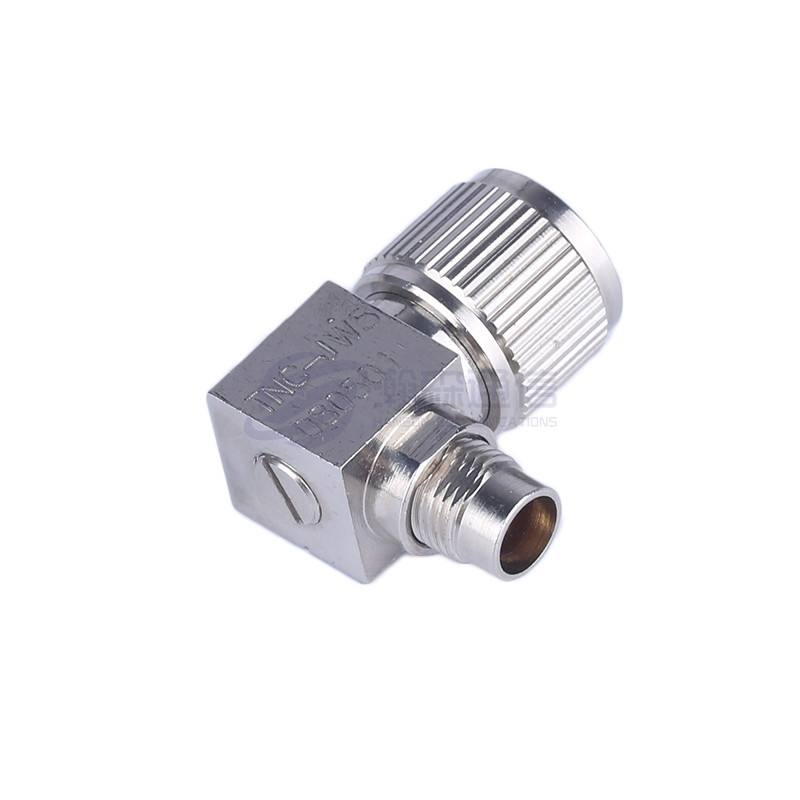

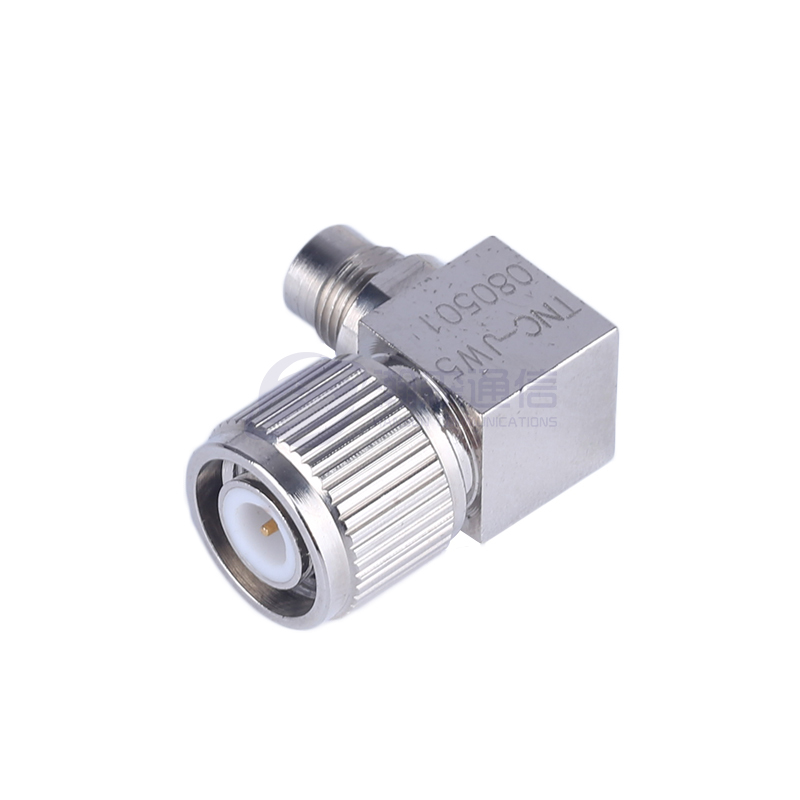

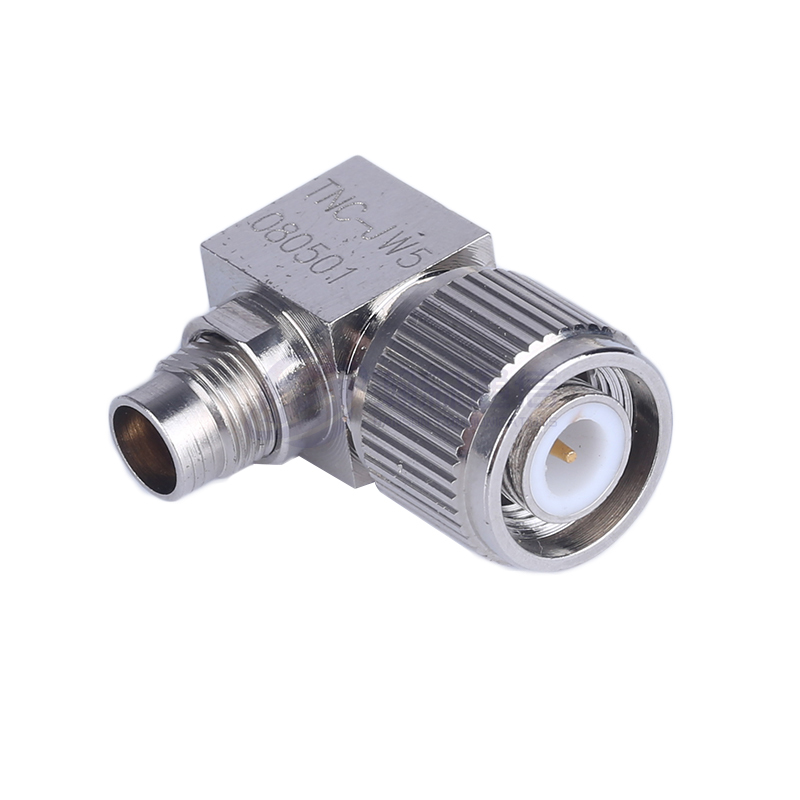

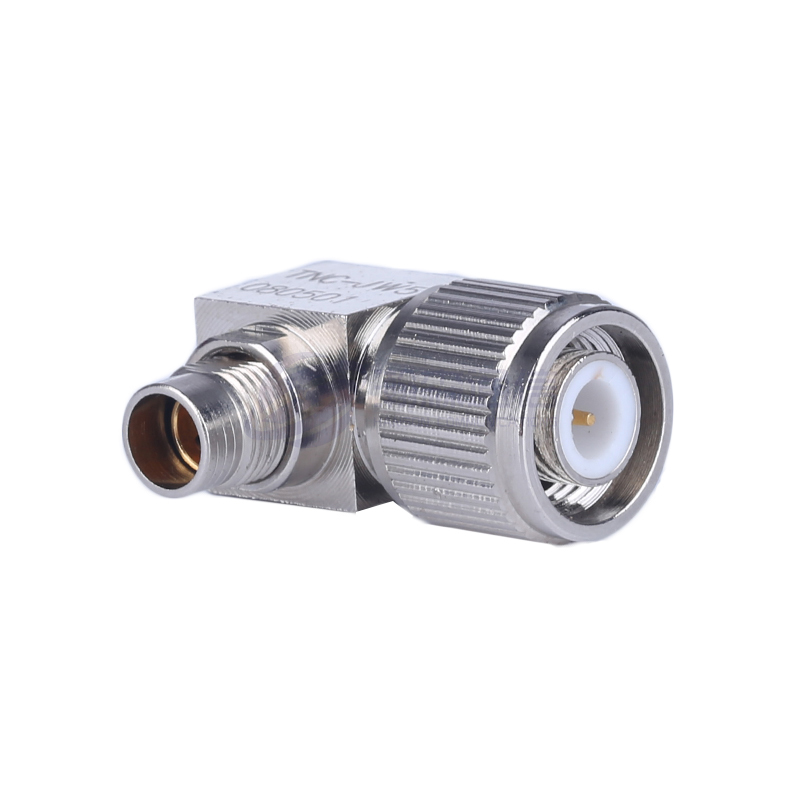

  • TNC-JW5
    TNC-JW5
    Model Genus cable
    TNC-JW5 SYV-L-3-4, SFCJ-50-3-51, RG142
    TNC-JW7 SYV-L-5-1, SFCJ-50-5-51
    TNC-JW10 SYV-50-7-2, SFCJ-50-7-51
  • TNC-JW5-1
    TNC-JW5-1
    Exemplar Genus cable
    TNC-JW5-1 SYV-L-3-4, SFCJ-50-3-51, RG142
  • TNC-K5
    TNC-K5
    Model Genus cable L
    TNC-K5 SYV-L-3-4, SFCJ-50-3-51, RG142 31
    TNC-(J)5
    TNC-K7 SYV-L-5-1, SFCJ-50-5-51 33
    TNC-K10 SYV-L-7-1, SYV-L-7-2, SFCJ-50-7-51 33

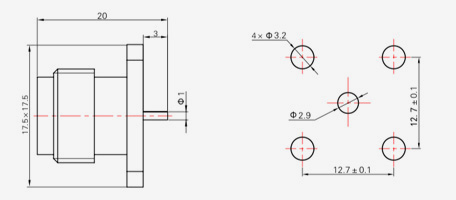

  • TNC-KFD1
    TNC-KFD1
  • TNC-KFD4
    TNC-KFD4

CONTACTUM SERVATE

Submit

PRODUCTA AFFINIA
